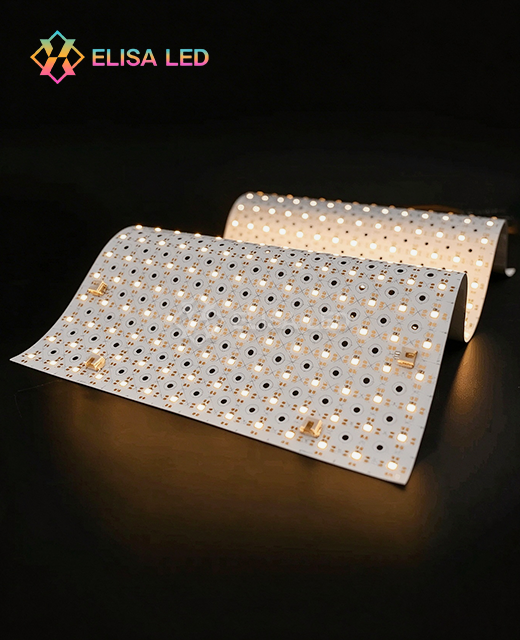

392LEDs Individual Cut Single White is a high-density LED sheet designed for installations where fit precision and light uniformity matter. This is based on a 24V parallel circuit with 392 LEDs per metre. Each LED is independently cuttable every 2.55mm. This gives a dot-free even white illumination. The specifications include CRI >90, luminous effectiveness up to 120 lm/W, SDCM <3 colour constancy and 3oz copper FPC for heat management. Colour temperatures available: 2700K, 3000K, 4000K, 6500K.
This product is a monochromatic white LED strip built on a parallel circuit design. Each of the 392 LEDs per meter is paired with a precision resistor, allowing a 24V DC input to be regulated independently at each node. This keeps voltage drop minimal and brightness consistent across the full run.
Unlike standard LED strips with cut intervals of 50mm or more, this sheet can be cut at every single LED — every 2.55mm. That means no wasted segments, no awkward light gaps, and no compromises when fitting exact cabinet or cove dimensions.
The monochromatic white phosphor coating produces a seamless linear glow, making it virtually dot-free even inside thin aluminum diffusers.
| Parameter | Details |
|---|---|
| Part Number | XXA-SHEET-392D2835-W |
| LED Quantity per Sheet | 392LEDs |
| Efficacy | 120lm/W |
| Voltage | DC 24V |
| Power per Sheet | 18W / 30W / 45W |
| Dimensions | 480 × 240mm |
| Brightness | 4,500 lm |
| Beam Angle | 120° |
| CRI | Ra >90 |
| IP Rating | IP20 |
| CCT Options | 2700K / 3000K / 4000K / 6500K |
| Luminous Efficacy | Up to 120 lm/W |
| Color Consistency | SDCM <3 |
| PCB | 3oz Copper FPC |
| Lifespan | L70 >50,000 hours |
| Lead Time | 10–15 days / No MOQ |

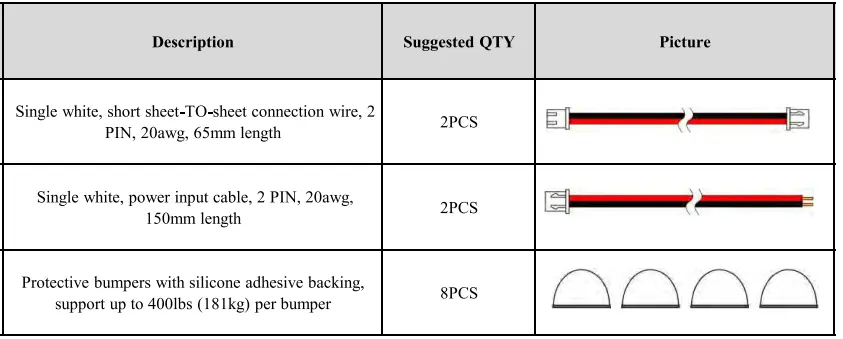

Notes:
1. The accessories below are not included in the price of the LED sheet;
2. You can add more accessories base on your request.
Individual Cut at Every LED
The cut point is every 2.55mm — one per LED. This level of precision is rarely available in standard commercial strips. You get exact-fit results without cutting through active circuits or losing usable LEDs at the ends.
3oz Copper FPC for Heat Control
High LED density generates significant thermal load. The 3oz rolled-annealed copper FPC spreads that heat efficiently. Pairing the sheet with an aluminum profile supports full thermal management and helps maintain the rated lifespan of L70 >50,000 hours.
SDCM <3 Single Binning
Stringent phosphor control and single binning ensures consistent colour across batches. SDCM <3 indicates that there is no obvious colour change across successive manufacturing runs, which is vital for large volume commercial installations or repeat orders.
Compatibility with Dimming Protocol
This sheet is compatible with PWM-based dimming systems including DALI, 0-10V and TRIAC when used with a suitable driver. It may be integrated with building management systems or used as a standalone dimmer control.

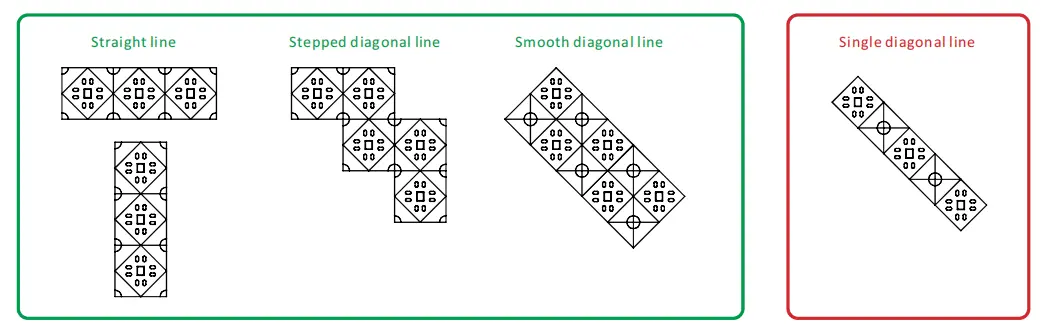

LED light sheet can be cut into many custom shapes. When cutting it, it’s important to use only pre-marked cut lines on the sheet and also to maintain electrical contact. The images below represent the smallest possible linear routing types. The green box represent strip routing types that work by preserving the electrical connection, and the one in red represents a routing type that will not function correctly due to interruptions of the electrical connection.

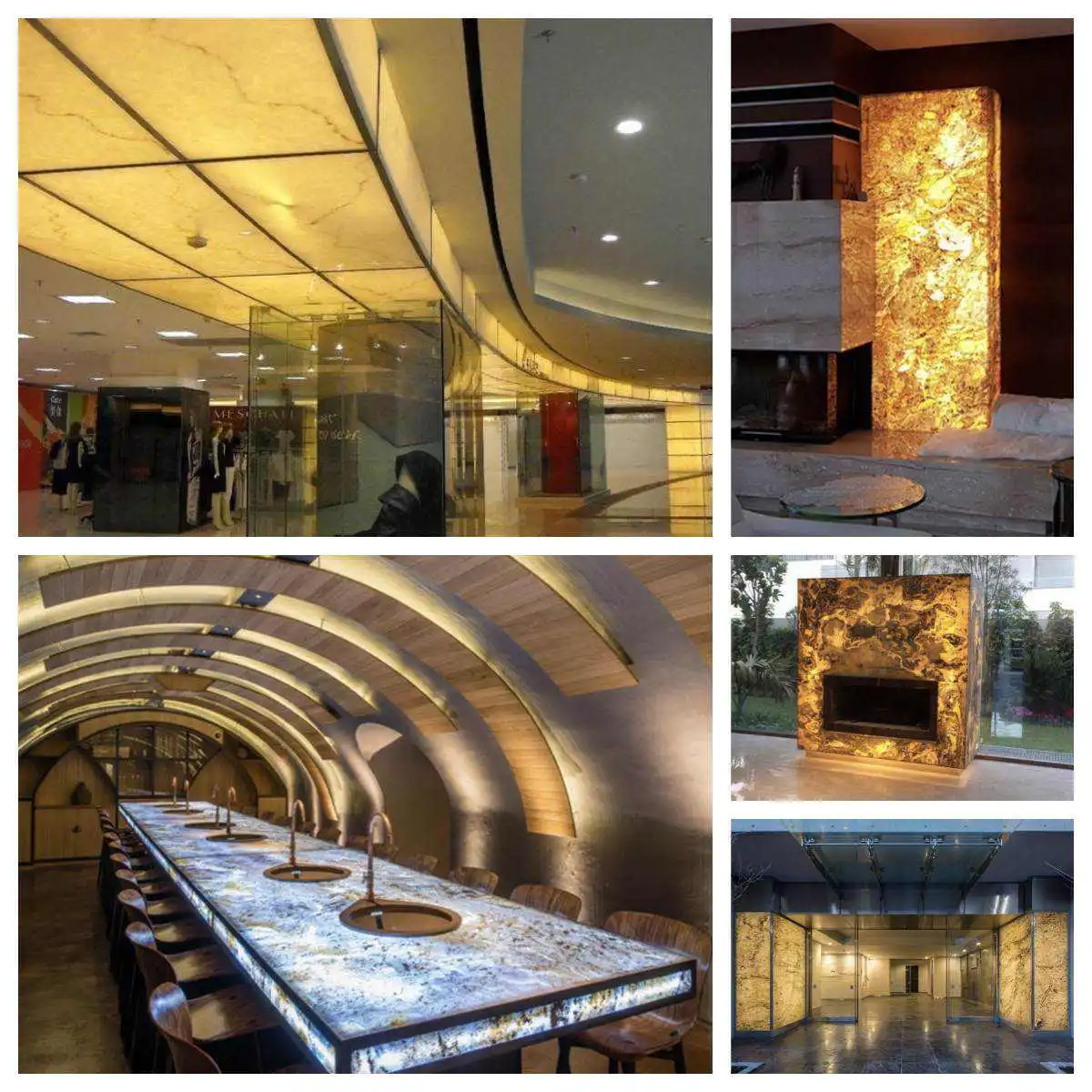

High-End Millwork and Cabinetry
Custom furniture and built-in cabinetry demand millimeter-level accuracy. The individual cut design eliminates shadowed corners and light bleed at the ends — a recurring issue with lower-density strips in bespoke joinery projects.
Task and Workstation Lighting
Workspaces that require flicker-free, shadowless illumination benefit from the 392 LEDs/m density and up to 4,500 lm output. The high LED count reduces the visible dot pattern, supporting visual clarity for precision tasks.
Curved Architectural Contours
Rounded bar counters, curved ceiling coves, and organic interior details benefit from the dense LED spacing and 2.55mm cut interval. You can follow complex geometries without the scalloping effect common in lower-density strips.
Every batch of this product goes through a multi-step testing process before shipment for 392LEDs Individual Cut Single White:
ElisaLED was founded by Elisa, who has been working in the LED industry since 2016. The team has hands-on experience across product development, project consultation, and after-sales support.
Q：What is the difference between the 180° Light Emitting Single White and the product?
A：The 180° version provides wide-angle illumination suitable for broad accent lighting. The product is designed for precise length customization, with a cut point at every LED for exact-fit installations. If your project requires millimeter-level fitting, this sheet is the more practical choice.
Q：Can I cut this sheet anywhere along its length?
A：Yes. The individual cut designation means it is cuttable at every single LED, approximately every 2.55mm, allowing precise measurement matching for your installation.
Q：What power supply is recommended?
A：A constant voltage 24V DC power supply is required. A 20% power overhead is recommended for long-term safety and stable performance.
Q：How is color consistency maintained across different orders?
A：Single binning and strict phosphor control keep SDCM <3, ensuring no visible color shift between batches — including separate production runs for the same project.
Q：Is it compatible with DALI or 0-10V dimming?
A：Yes. This sheet works with DALI, 0-10V, and TRIAC dimming protocols when the correct compatible driver is used.
Have a project requirement or a technical question for 392LEDs Individual Cut Single White? Reach us at inquiry@elisaled.com. We aim to respond within 24 hours on business days.
