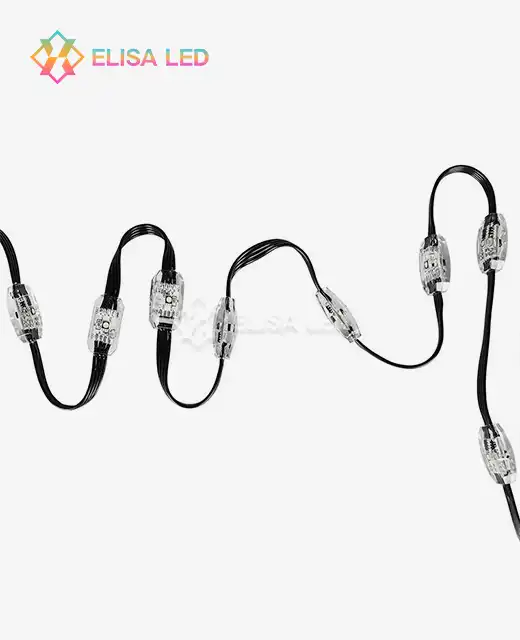

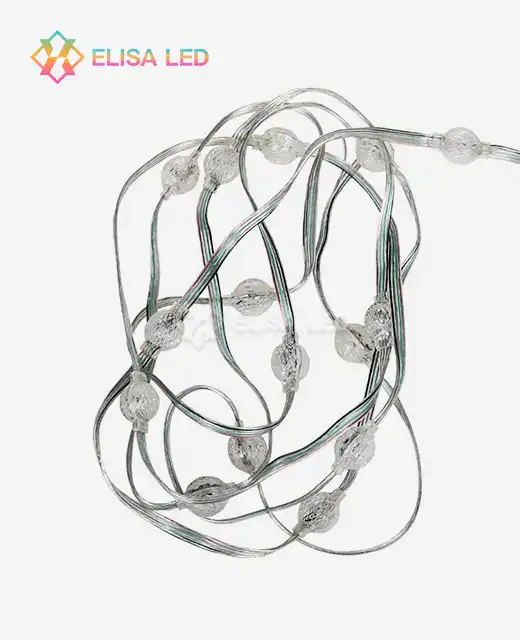

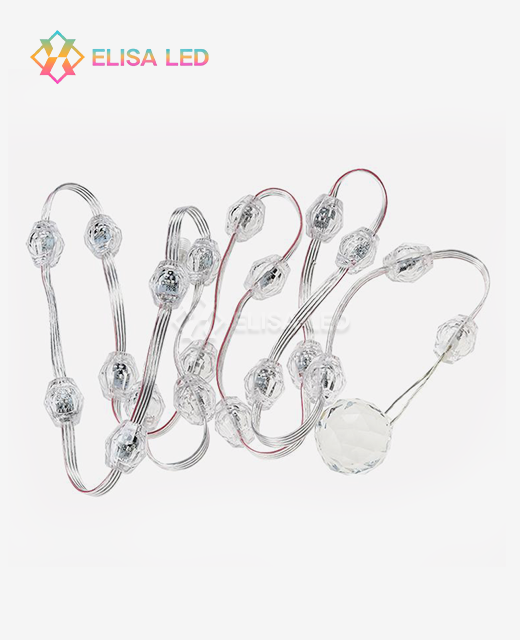

C25/3015/2723 2-sided Pixel Chain
Model No.: XXA-C25/3015/2723
10cm length between each light
Sample available
Lead Time: 5-7days
10cm length between each light
Sample available
Lead Time: 5-7days
The C25/3015/2723 2-sided Pixel Chain is an addressable LED pixel system designed for installations where light must be visible from more than one direction. Each node uses SMD 3535 RGB LED components mounted on opposite faces of the PCB, delivering RGB output on both sides simultaneously. Running on DC12V, each string holds 20 nodes spaced 10cm apart, with a power draw of 0.72W per node. It supports UCS1903 and GS8206 protocols, 16.7 million colors, and 256 grayscale levels.
Most pixel chains emit light from one direction only. That creates visible gaps in 3D suspended installations, where viewers approach from multiple angles and half the nodes face away from the audience.
This is solved by a PCB dual-sided design which gives a symmetrical light distribution on two sides and has a CRI of more than 80. Both sides have identical colour output, whether it’s a hanging curtain over a stage or a hung grid array.
The polycarbonate shell is UV-stabilized to prevent fading from long term outdoor exposure. IP68 rated, thus it can be fully submerged in up to 2 meters for 24 hours and is pressure tested.
| Parameter | Details |
|---|---|
| LED Type | SMD3535 RGB (dual-sided) |
| LED Protocol | UCS1903 / GS8206 |
| Input Voltage | DC12V |
| Power per Node | 0.72W |
| Quantity per String | 20 pcs/string |
| Node Spacing | 10cm (customizable 100mm–1000mm) |

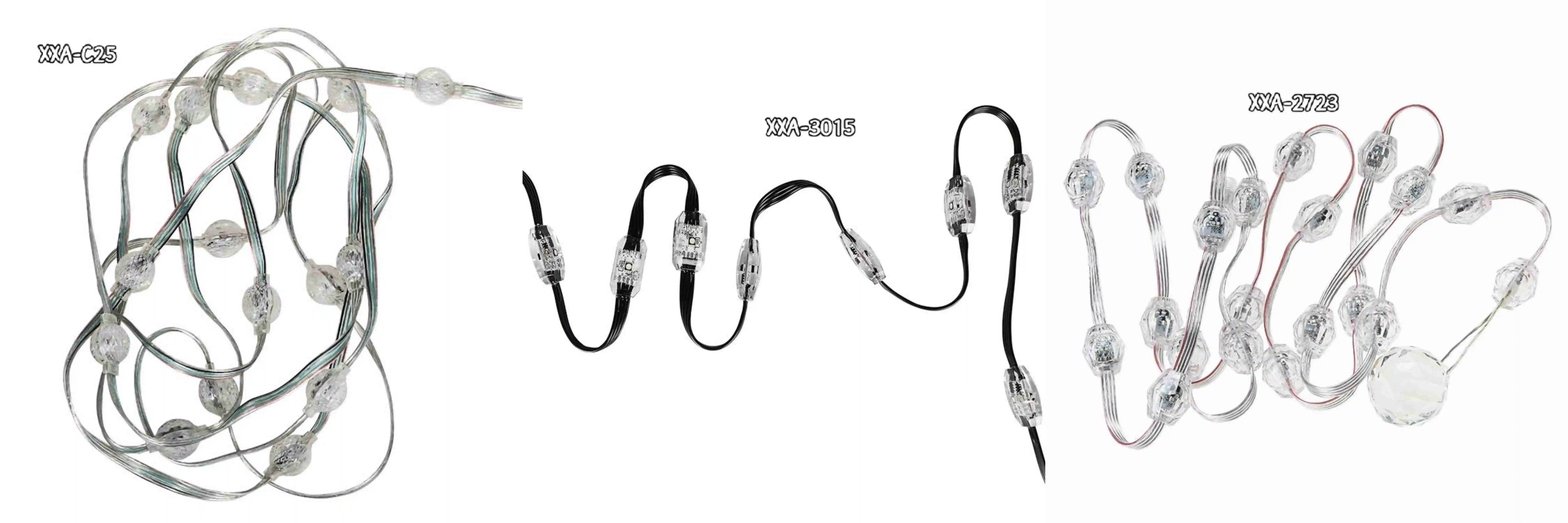

| Housing Diameter | 25mm / 30×15mm / 27×23mm |
| Color Range | 16.7 million colors |
| Grayscale | 256 levels |
| CRI | > 80 |
| IP Rating | IP68 |
| Operating Temperature | -20°C- 60°C |
UV-stabilized polycarbonate shell prevents yellowing from direct sunlight and outdoor UV exposure. The inter-pixel wire is of tinned copper, with great flexibility, and reinforced to allow vertical tension stresses in hung systems without wear of the joints on long runs.
Thermal management benefits from a thermally conductive PCB that spreads the heat around the casing, maintaining operating temperatures below 60°C during long periods of full-brightness operation.
Inter-pixel spacing can be adjusted from 100mm to 1000mm, allowing the node density to be adapted to the layout of the project without the need for special wiring from the start.
Architectural Media Facades — The dual-sided output makes the C25/3015/2723 2-sided Pixel Chain suited for 3D grid arrays on building exteriors, where pedestrians approach from multiple street-level angles and single-sided nodes would create dark faces.

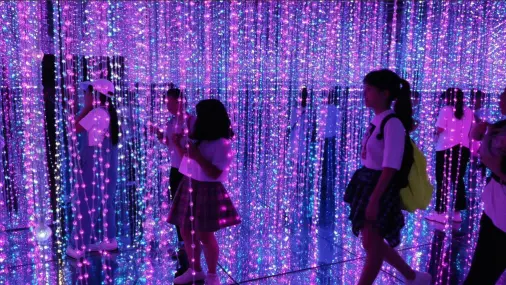

Large Scale Event Production – For concert stage design, as suspended digital drapes or kinetic backdrops. Independent addressable pixels on both sides guarantee that viewers in front of or behind the installation see the complete material without dead zones.
Outdoor Commercial Installations — The IP68 rating and UV-stabilized housing support deployment in high-humidity environments such as waterfront commercial areas or covered outdoor plazas where prolonged moisture exposure is expected.

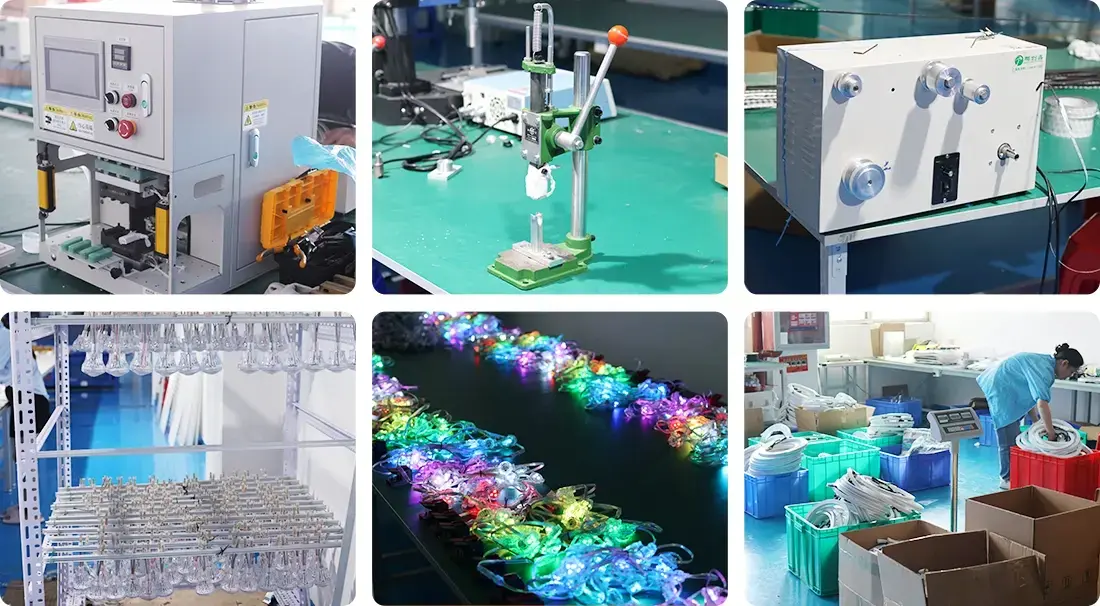

Units are tested for waterproof integrity through submersion at 2 meters for 24 hours before shipment. The UV-stabilized housing is validated for outdoor color retention. Wiring connections are inspected for solder joint integrity under mechanical load conditions relevant to suspended installations.
Color consistency across production batches is measured using integrating sphere photometry to maintain uniformity across nodes in the same string and across strings in the same order.
ElisaLED offers customization covering PCB design, LED chip selection, controller ICs, housing, wiring, and packaging. Available options include custom inter-pixel spacing, DC24V voltage configuration, and DMX512 protocol variants for direct lighting console integration.
Sample lead time is 5–7 days. Production lead time for customized orders is 7–10 days. Contact us to discuss project-specific requirements.
Q：Are the pixels individually addressable?
A：Yes. Each node on the product is individually addressable via UCS1903 or GS8206 protocol, supporting pixel-level effects including chasing, fading, and synchronized animation when paired with a compatible pixel controller.
Q：Can the node spacing be customized?
A：Yes. Inter-pixel spacing can be adjusted between 100mm and 1000mm to match the density requirements of a specific installation layout.
Q：What happens if one pixel fails?
A：Most configurations include a breakpoint resume signal wire. If one node fails, the remaining nodes in the string continue to operate without interruption.
Q：Is the product suitable for permanent outdoor installation?
A：The IP68 rating and UV-stabilized polycarbonate housing are intended for outdoor use. Suitability for a specific environment depends on installation method, mounting tension, and local climate conditions. Contact us with project details for guidance.
Q：What voltage and protocol options are available?
A：Standard configuration is DC12V with UCS1903 or GS8206. DC24V and DMX512 IC options are available through the customization program.
For project inquiries or sample requests, contact us at inquiry@elisaled.com. We welcome questions about specifications, customization, and application requirements for C25/3015/2723 2-sided Pixel Chain.
