36x25 DMX512 5050 RGBW
Model No.: XXA-FWW3625-3D512RGBW
Control Protocol: DMX512
MOQ: 5M
Angle: 20° / 30° / 25° x 45°
IP Rating: IP67
Control Protocol: DMX512
MOQ: 5M
Angle: 20° / 30° / 25° x 45°
IP Rating: IP67
The 24LEDs/m DMX512 5050 RGBW 3D Flex Wall Washer Light is designed for professional installations that require stable, programmable color control over long cable runs. Each meter has 42 SMD 5050 RGB chips controlled by DMX512 protocol. DC24V, 8W/m power consumption, 1080lm/m output. The IP67 protection and beam angle choices of 20° / 30° / 25° x 45° make it suitable to a wide variety of architectural and entertainment venues, with its 166.7mm cutting unit.
Unlike standard rigid or flat 2D strips, this product features a true 3D flexible design. It supports both vertical and lateral bending (minimum bending diameter: D≥300mm lateral, D≥400mm vertical), allowing for seamless, creative installations on complex curves and 3D structures without light gaps.
The integration of the TM512 control IC using the industry-standard DMX512 communication protocol provides highly stable signal transmission across long cable distances. This makes it ideal for large-scale, synchronized architectural projects.
The high-performance RGBW output combines RGB and a dedicated 3000K (±150) White channel, delivering rich color mixing and pure white light from a single unit. With an efficiency of up to 41 lm/W, balanced density of 24 LEDs per metre produces a smooth, continuous linear illumination with no black areas between the LEDs.
| Parameter | Details |
|---|---|
| Part Number | XXA-FWW3625-3D512RGBW |
| LED Quantity | 24 LEDs/m |
| LED Type | SMD 5050 RGBW 4in1 |
| Voltage | DC24V |
| Power | 24W/m |
| Cutting Distance | 250mm |
| Beam Angle | 20° / 30° / 25° x 45° |

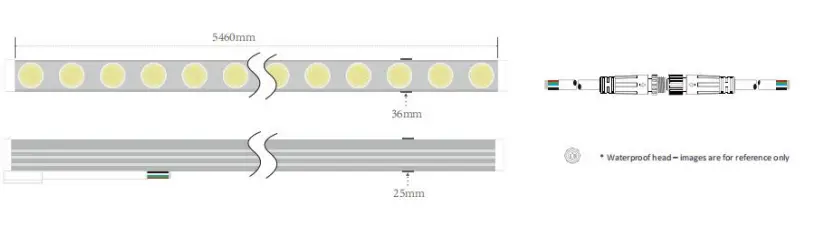

| Dimension | W36× H25mm |
| Standard Length | 5m / reel |
| IP Rating | IP67 |
| Control Protocol | DMX512 |
| IC Chip | TM512 |
| Lead Time | 5–7 days |
| Warranty | 2 years |
The embedded TM512 ICs allow for individually addressable control (pixel-by-pixel), enabling fine-grained dynamic effects across the strip. This provides precise control over each segment without the need for extra decoders.
IP67 protection means the strip is fully sealed with a silicone tube and waterproof connectors, designed for dust-tight conditions and brief immersion. It is highly suited for exterior architectural facades and landscape lighting exposed to harsh weather.
For DC24V types, we suggest injecting power every 5 meters to ensure even brightness and prevent voltage drop on longer runs. The 250mm cutting unit may be length-adjusted to match exact architectural requirements with zero wastage.
The beam angle choices – 20°, 30°, and 25°×45° – allow specifiers to adapt the optic to the throw distance and surface texture of the wall being lit. Combined with the 3D flexible design (supporting lateral bending D≥300mm and vertical bending D≥400mm), it provides perfect grazing effects on curves or large wall washes.

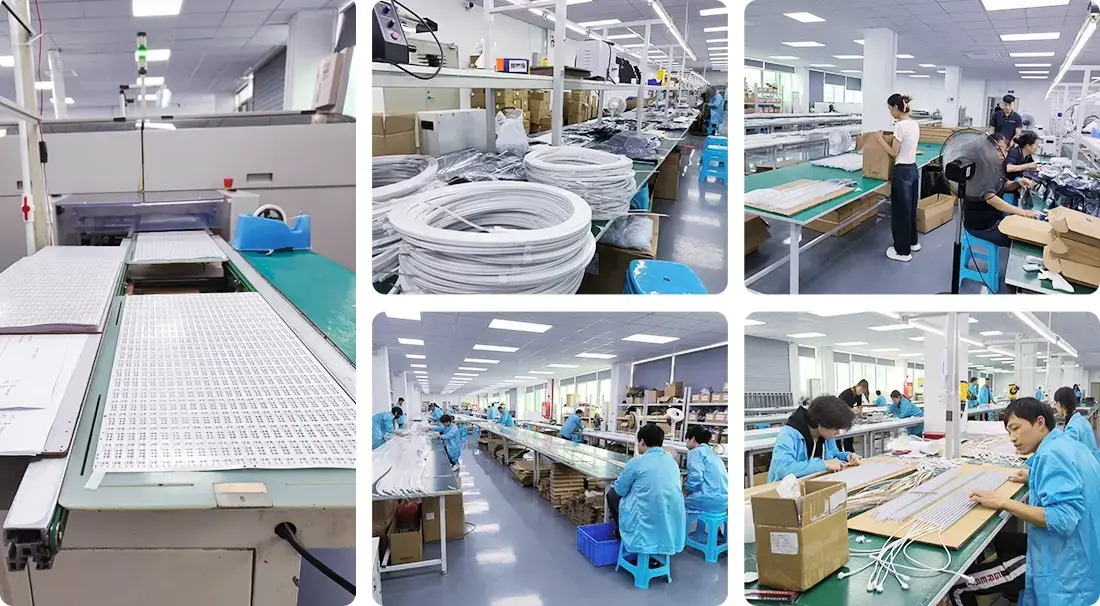

ElisaLED applies a multi-stage inspection process to each production batch of 24LEDs/m DMX512 5050 RGBW 3D Flex Wall Washer.
Oscilloscopes are used to test the signal to ensure DMX waveforms are constant across the rated working distance of the strip. This way the control signal reaches every IC without degradations which might cause flicker or colour shifts.
Thermal testing cycles the strips to full brightness in heated settings to detect early LED degradation prior to product shipment. IP67 encapsulation is tested for every batch to ensure a completely sealed silicone or PU covering without any openings.

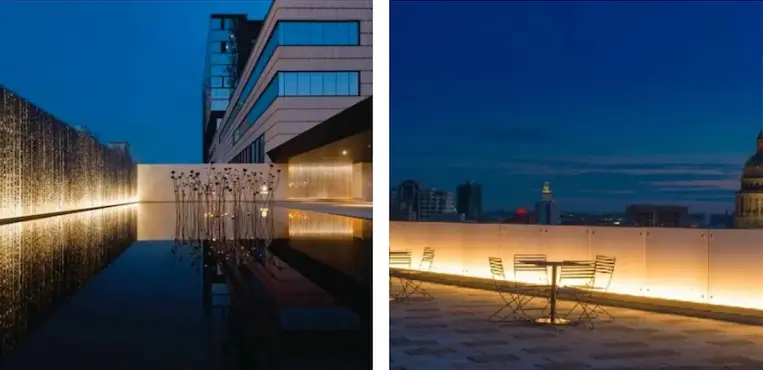

Architectural Facade Lighting: DMX512 delivers the signal stability needed for big building facades with extensive wire lengths and constant outside exposure. The IP67 classification allows for year-round external usage in most climes without extra housing.
Stage and event production: the strips are integrated into truss systems and stage backdrops, allowing synchronised colour sequences using Art-Net-to-DMX gateways. The parallel IC architecture implies if one node fails the remainder of the installation is unaffected.
Commercial Interiors Hotels and retail venues utilise this strip for programmable ambient lighting integrated with building automation systems. Other lower densities cannot match at the same viewing distances with the density of 42 LED/m which gives a smooth linear gradient.
ElisaLED provides OEM and ODM services including PCB design, LED chip selection, controller IC selection, housing, wiring and packaging. Beam Angle and IP rating may be specified as per project environment
Custom orders have different lead times than ordinary stock. For a precise manufacturing timeline based on your volume and configuration, please contact the team direct with your specs.
Q: What's the difference between RGB, RGBW and DMX RGB wall-washers?
A: RGB is used to create complete colour effects using red, green and blue channels. RGBW adds a separate white channel (in this case, a dedicated 3000K Warm White) to reproduce true, pure white light without mixing all three primaries. DMX RGB has the same complete spectrum of colour as normal RGB but with the added benefit of being DMX512 addressable. This means that you can synchronise and manage big installations based on scenes.
Q: Which strip is good for a professional sync lighting project?
A: This 3D flexible LED wall washer is equipped with the TM512 IC and supports the DMX512 protocol. It can be individually or collectively addressed in pixels, making it ideal for large-scale setups with many zones that require coordinated sequences from a single professional controller.
Q: How does the strip handle a signal failure at one IC?
A: The TM512 IC design ensures stable signal transmission. While the document notes "individually addressable" control, the use of standard DMX512 (TM512) usually implies a parallel signal architecture. If one IC fails, the remaining ICs on the strip can continue to receive the DMX signal and operate normally, unlike series-based SPI architectures where a single failure can interrupt the entire downstream chain.
Q: What factors should be reviewed before specifying a flexible LED wall washer?
A: Key considerations include LED density (24 LEDs/m) and luminous output (up to 1020 lm), operating voltage (DC24V) and power injection intervals (recommended every 5 meters), color versus white lighting requirements, control protocol compatibility (DMX512), IP rating relative to the installation environment (IP67), beam angle relative to throw distance (20°, 30°, or 25°×45°), and mounting method (especially the 3D bending limits: D≥300mm lateral, D≥400mm vertical).
Q: Can this strip be used where flicker is a concern, such as broadcast or filming environments?
A: The strip's TM512 IC design supports stable DMX512 PWM output. Whether it meets the specific refresh rate requirements of a given camera setup depends on both the strip's IC and the DMX controller being used (e.g., K-10000C). Contact ElisaLED with your specific camera and frame rate requirements for guidance.
Q: Is auto-addressing or manual DMX addressing better for permanent installations?
A: Auto-addressing ICs reduce commissioning time in field installations. Manual addressing gives more granular control and is generally preferred for fixed, permanent setups where address stability over time is a priority.
Send your project requirements to inquiry@elisaled.com. ElisaLED accepts inquiries for standard orders, custom configurations, and OEM/ODM projects for 42LEDs/m DMX 5050 RGB.
