288LEDs 12LEDs/Cut 5050 RGB
No MOQ
Lead Time: 10-15days
Brightness: 2170lm
Angle: 120°
IP Rating: IP20
Lead Time: 10-15days
Brightness: 2170lm
Angle: 120°
IP Rating: IP20

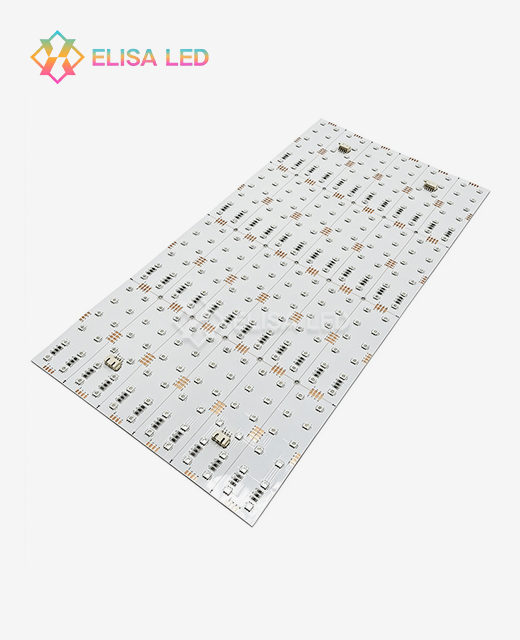

The 288LEDs 12LEDs/Cut 5050 RGB LED sheet is designed for installations where uniform color coverage across large surfaces is non-negotiable. Running on DC24V at 62W/m, it packs 288 tri-chip 5050 SMD LEDs per meter across a 480×240mm sheet format. The 12-LED cut interval gives installers precise length control while maintaining circuit stability. This makes it a practical choice for cove lighting, facade work, signage, and similar professional applications.
| Parameter | Details |
|---|---|
| Part Number | XXA-SHEET-288D5050RGB |
| LED Quantity | 288 LEDs |
| LED Type | 5050 RGB |
| Cut Interval | Every 12 LEDs |
| Voltage | DC 24V |
| Power | 62W/m |
| Brightness | 2,170lm |
| Beam Angle | 120° |
| Sheet Dimension | 480 × 240mm |
| IP Rating | IP20 |
Unlike standard LED strips that suffer from visible "hot spots" or complex installation requirements, this 288LED RGB Sheet is engineered specifically for professional-grade light boxes and backlighting applications. Here is what sets it apart:
1. Ultra-High Density for Seamless Lighting (288 LEDs)
With 288 5050 LEDs packed into a compact 480mm x 240mm panel, this sheet delivers uniform, edge-to-edge illumination. The high density (12 LEDs per cut unit) eliminates the "dotted" look common in lower-density strips, ensuring your light box graphics look vibrant and professional.
2. True "Free-Cutting" Versatility

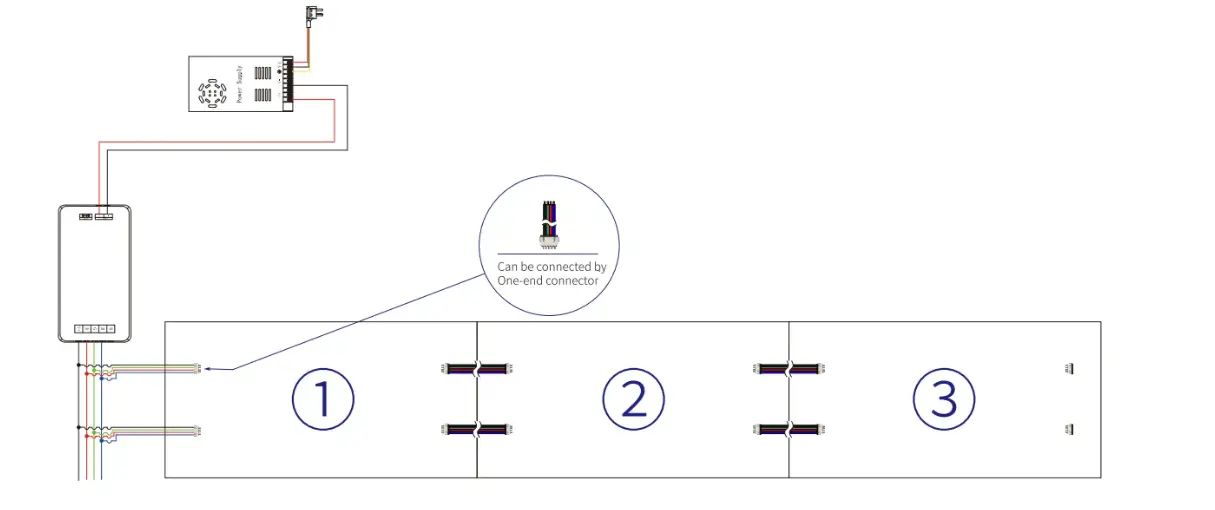

Installation is no longer restricted to straight lines. Thanks to the 12 LEDs/cut design, you have the freedom to cut the sheet into various shapes and sizes to fit custom signage or irregular light box dimensions. The included terminals and connectors make linking multiple sheets a plug-and-play experience.
3. High Brightness & Power Output
Engineered for demanding environments, this sheet boasts a brightness of 2170lm per panel and a power output of 62W per meter. It provides the intense backlighting required to make advertising light boards and counters pop, even in brightly lit commercial spaces.
4. Optimized for Optical Lenses
Unlike generic LED sheets, this model is designed to be compatible with optical lenses. This makes it the ideal solution for deep light boxes where light diffusion is critical, ensuring even light distribution without dark spots.
5. Commercial-Grade Reliability
Built for the long haul, this sheet offers a 50,000-hour lifespan and comes with a 3-year warranty. It holds ETL, CE, RoHS, and Reach certifications, ensuring it meets strict safety and environmental standards for commercial use.
6. Flexible Control (RGB & 24V)
The DC24V input ensures stable voltage over longer runs (reducing voltage drop), while the RGB capability allows for dynamic color changing effects, perfect for creating eye-catching advertising displays.
The 12-LED cut interval is what separates this sheet from standard, rigid lighting solutions. Here is why it matters for your project:
Precision Sizing: It allows you to cut the sheet exactly where you need it—every 12 LEDs—minimizing waste and ensuring a perfect fit for custom light boxes and irregular signage.
Design Freedom: You are not locked into fixed panel sizes. Whether you need a narrow strip or a complex shape, this interval gives you the flexibility to DIY various configurations without damaging the circuit.
Consistent Performance: Each cut segment maintains the same voltage and brightness, ensuring uniform illumination across the entire display, even after customization.

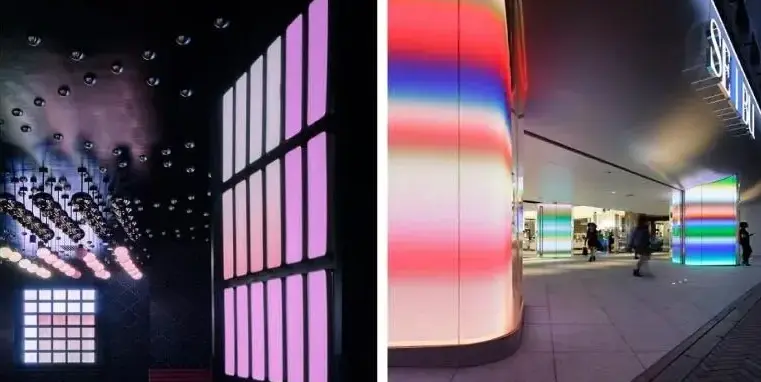

Architectural Facade Lighting
288LEDs per LED sheet and 12-LED segmenting produce consistent color coverage across building outlines and continuous surfaces. Light output remains even without visible gaps between segments.
Luxury Retail and Hospitality Cove Lighting
High-end retail showrooms and hotel interiors use dense LED sheets for indirect cove lighting where dot-free output is required. Lower-density strips often leave visible shadow patterns in shallow coves — this density level addresses that.
Signage and Display Installations
The high-density output maintains visibility in bright ambient environments. The circuit design is suited to continuous-operation display and signage setups where consistent color rendering matters.
ElisaLED applies the following quality procedures to production batches of the 288LEDs 12LEDs/Cut 5050 RGB sheet:
The 5050 RGB chips used in this sheet are LM-80 certified. When thermal management requirements are met, the strip is rated to maintain L70 lumen performance for over 50,000 hours.
ElisaLED provides the flexibility to customise PCB layout, LED chip choices, controller ICs, housing, wiring and packaging. If a certain sheet size, cut interval or a waterproof grade over IP20 is needed, the technical staff will be able to work from your specifications.
ElisaLED has been making LED solutions since 2016. Questions are answered within 24 hours, allowing for rapid project and procurement schedules.
Q：What is the difference between this sheet and other LED sheet options in the range?
A：The product has complete colour effects of RGB. Other sheets in the range are available as tunable white, RGBW with a dedicated white channel or RGBCCT combining RGB with adjustable warm and cool white. The proper decision depends on whether your application needs colour effects, white light, or both.
Q：Why does this sheet use a 12-LED cut interval instead of 3 or 6?
A：The 12-LED segment reduces current load per copper trace, which limits heat and voltage drop in high-density 288 LEDs/m configurations. It also supports longer runs from a single power feed point.
Q：Does this sheet require an aluminum profile?
A：Yes. The high density of 5050 chips generates significant heat. An aluminum profile is necessary to act as a heat sink and prevent early lumen depreciation.
Q：What is the difference between RGB, RGBW, and RGBCCT LED sheets?
A：RGB sheets produce color effects only. RGBW sheets add a dedicated white channel for true white output. RGBCCT sheets combine RGB with tunable warm and cool white, offering the widest range of lighting scenarios from a single product.
Q：What should be considered before specifying an LED sheet?
A：Key factors include sheet size and available cut points, LED density and brightness output, operating voltage and power supply capacity, control system compatibility, heat dissipation method, mounting approach, and installation environment conditions.
Q：What is the expected lifespan in commercial settings?
A：When thermal management requirements are met, the strip maintains L70 lumen performance for over 50,000 hours, supported by LM-80 certified 5050 RGB chips.
