The 60LEDs/m SK9822 5050 RGB LED strip is a dual-signal addressable lighting solution built on the 5050 SMD format, delivering 60 individually controllable pixels per meter. Powered at DC5V, 14.4W/m consumption, 504lm/m brightness output. Separate Data (DAT) and Clock (CLK) lines for synchronous communication – eliminating flicker, signal instability and timing concerns typical with single-wire protocols like WS2812B. It provides 10mm PCB width, IP20/IP65/IP67/IP68 choices and a 5–7 day lead time, therefore it is suitable for small installations and demanding professional applications.
The SK9822 uses a two-wire SPI protocol instead of a single data line. This changes how the strip communicates with your controller.
With WS2812B or SK6812, the microcontroller must send data with precise timing. Any interference causes dropped frames or color errors. The SK9822 doesn't rely on strict timing — the clock line tells each LED exactly when to read data, making it resistant to electromagnetic interference (EMI) over long cable runs.
The result: consistent color, no flickering, and far fewer transmission errors — especially over distances where single-wire strips often fail.
| Parameter | Value |
|---|---|
| Part Number | XXA-STRIP-60D5050RGBW-SK9822 |
| LED Density | 60 LEDs/m |
| LED Package | 5050 SMD |
| Voltage | DC 5V |
| Power Consumption | 14.4W/m |
| Brightness | 504 lm/m |

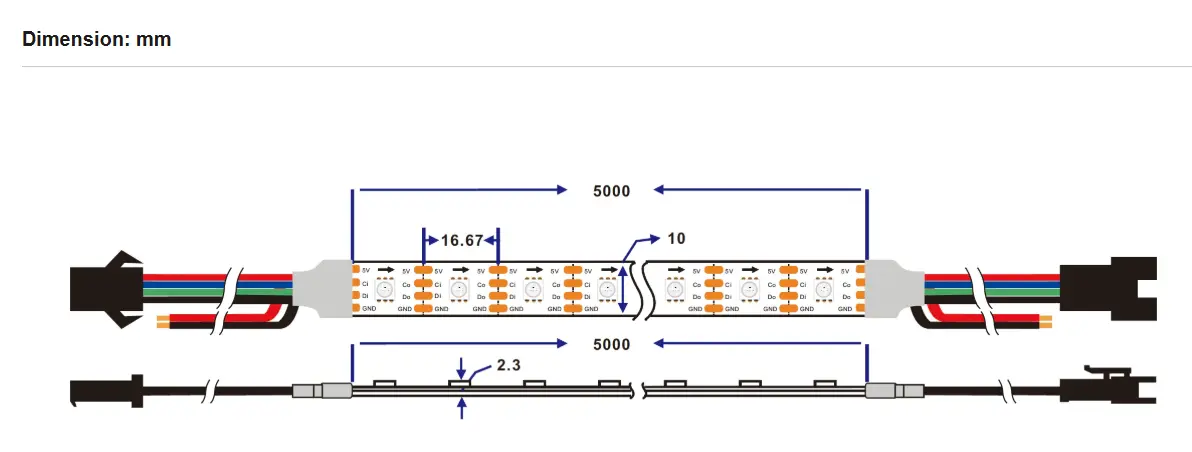

| PCB Width | 10mm |
| PCB Color | white / black |
| PCB Thickness | 2oz/3oz/4oz |
| IP Rating | IP20 / IP65 / IP67 / IP68 |
| MOQ | 5 meters |
| Lead Time | 5–7 days |
| Warranty | 2years |
Most addressable LED strips are 8 bit (256 levels) per colour channel. The SK9822 adds a second layer of operation, with a 5-bit global brightness register with 32 levels that work independently.
That's important when you're in low brightness environments. Standard strips reduce brightness by lowering the PWM duty cycle, which results in noticeable "stepping" at dim settings. SK9822 has a global register you can use to dim the whole strip without changing the 8 bit colour data so your colour accuracy is maintained across the whole range of brightness.
This is a distinct benefit over cheaper ICs for screens, film sets, or any application that requires smooth dimming.
The 60LEDs/m SK9822 5050 RGB is designed for applications where refresh speed, signal accuracy, and color consistency are non-negotiable.
Broadcast and Studio Lighting — Its 1.2MHz PWM frequency eliminates flicker at any camera shutter speed. Standard LED strips interfere with high-frame-rate cameras; the SK9822 doesn't.
Persistence of Vision (POV) Displays — POV fans, bicycle wheel displays, and light-painting tools depend on rapid pixel updates. The high-speed SPI clock ensures each frame renders without ghosting.
Large-Scale Architectural Installations — When controlling thousands of LEDs via Art-Net or sACN, the dual-wire protocol supports SPI clock speeds up to 30MHz. This reduces system latency and keeps animations synchronized across entire building facades.
The 60LEDs/m density also hits a practical sweet spot: enough pixel resolution for smooth gradients visible from 2–5 meters, without the power overhead of 144LEDs/m configurations.

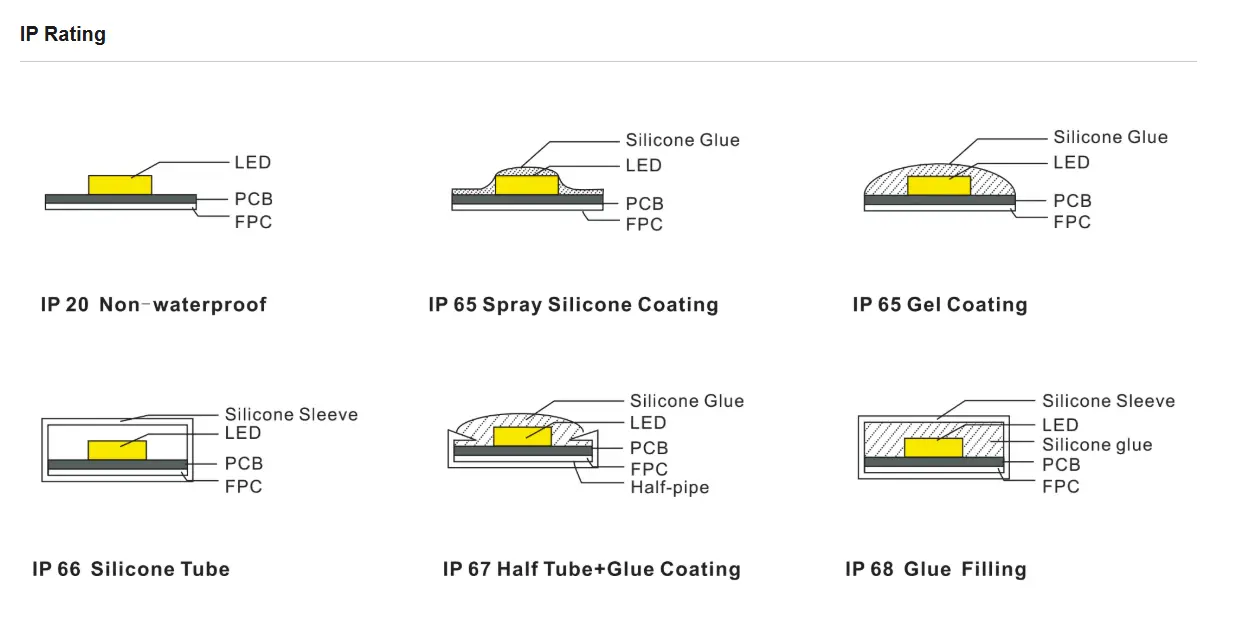

You can specify the waterproofing level based on your installation:
Each version uses the same SK9822 IC and 5050 SMD component. The physical build is based on a flexible PCB (FPCB) designed for thermal management across all variants.

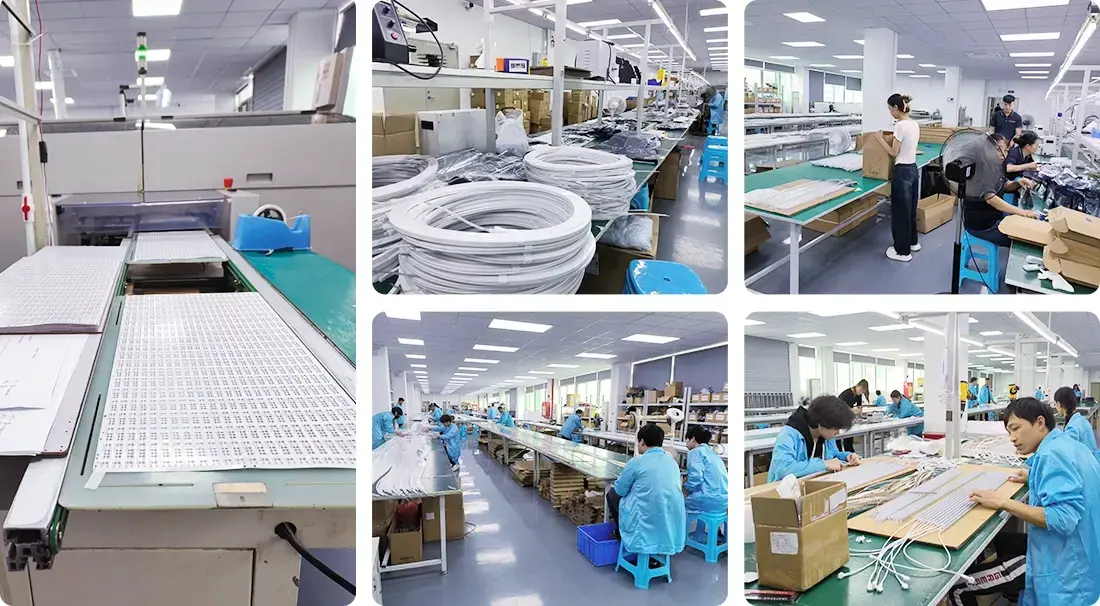

Every reel of 60LEDs/m SK9822 5050 RGB goes through structured production and inspection stages before shipment.
48-Hour Full-Load Aging — Strips run continuously at 100% white brightness to identify dead pixels or thermal issues in the 5050 SMD components before packaging.
Gold Wire Bonding Inspection — Internal IC-to-LED chip connections use 99.9% pure gold wire. This prevents bond failures caused by thermal expansion during operation.
Salt Spray Testing — Applies to IP65/IP67/IP68 versions, verifying that the silicone jacket and FPCB resist corrosion under outdoor conditions.
MacAdam Ellipse (SDCM) Binning — Color temperature and tint uniformity are measured across batches to prevent visible variation between reels used in the same installation.
Solder Joint Pull Testing — Each 5050 component is tested for mechanical bond integrity to the flexible PCB.
ElisaLED also conducts aging tests, waterproof testing, photometric testing, and environmental reliability testing as part of standard product verification.
ElisaLED provides OEM/ODM services covering PCB design, IC selection, housing, wiring, and packaging. If your project needs a specific reel length, connector type, or custom labeling, these can be arranged with a minimum order of 5 meters.
Production lead time for custom configurations is 5–7 days. ElisaLED responds to all inquiries within 24 hours and ships to customers in 50+ countries.
Q：Can I use APA102 code to control the product?
A：Yes. They are protocol-compatible. Libraries like FastLED and Adafruit_DotStar both support SK9822 without modification.
Q：Why choose 60LEDs/m over 30 or 144LEDs/m?
A：It balances power consumption and pixel pitch for medium-range viewing distances of 2–5 meters — enough resolution without excessive power draw.
Q：How do I manage voltage drop on a 5V strip?
A：Inject power at both ends of each 5-meter reel. For runs longer than 5 meters, add mid-point power injection to maintain color consistency across the full length.
Q：What is the advantage of SK9822/APA102C over WS2812B?
A：The separate clock line makes SK9822 far more resistant to EMI over long signal runs and removes the strict timing dependency that causes errors with WS2812B in noisy environments.
Q：What does the 5-bit global brightness control actually do?
A：It dims the entire strip independently of the 8-bit color data. This prevents the "stepped" dimming effect at low brightness levels and keeps color accuracy intact.
Q：What should I check before ordering a digital LED strip?
A：Review the IC type and protocol, LED density, voltage and power supply capacity, color output requirements, refresh rate needs, controller compatibility, IP rating, and required cut intervals for your installation.
