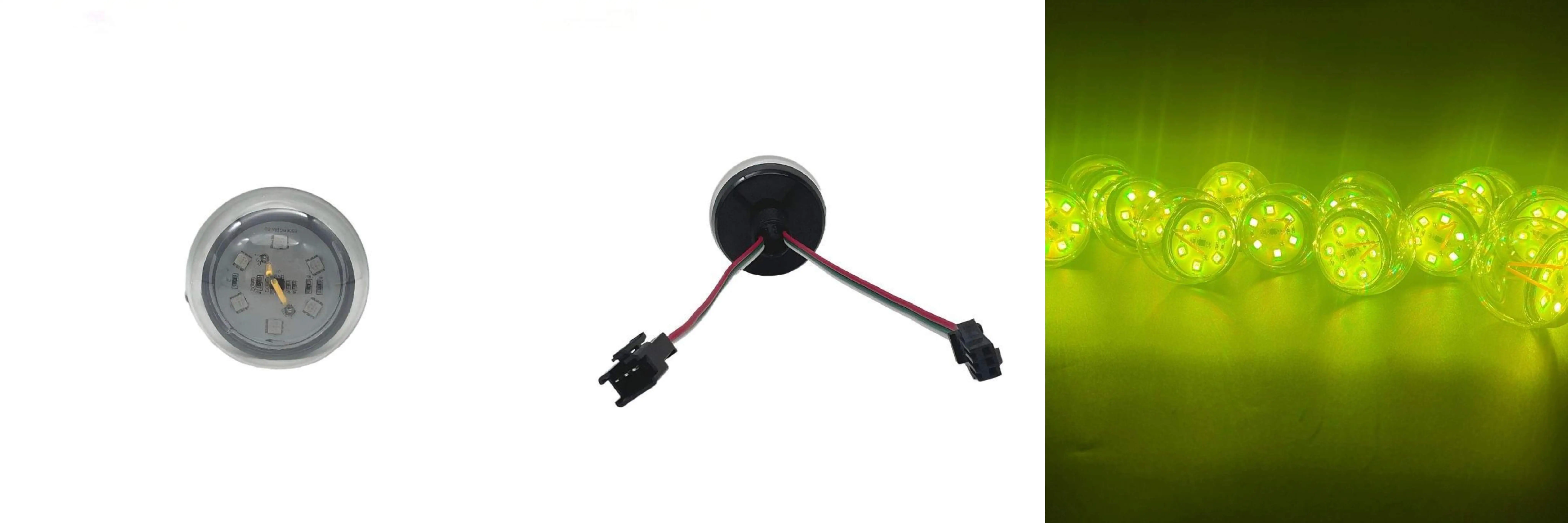

65mm LED Filament Pixel Light
Model No.: XXA-6506ICRGBW-50
clear/milky housing
Free sample available
Lead Time: 3-5days
clear/milky housing
Free sample available
Lead Time: 3-5days

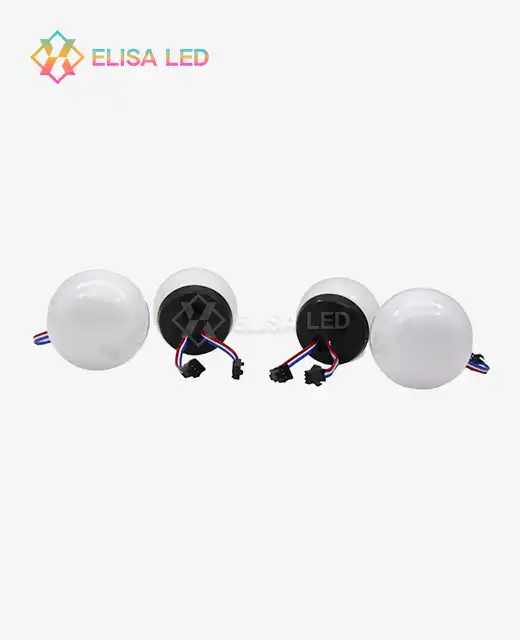

The 65mm LED Filament Pixel Light from Shenzhen Elisa LED Co., Ltd is a high-performance, programmable point-source lighting module built for demanding commercial and entertainment installations. Each device incorporates high-brightness 4-in-1 RGBW LEDs (3000K Warm White) with an integrated UCS2904 control IC, allowing pixel-level color addressing and rich white tones over huge node arrays. Housed in a robust PC (Transparent) and ABS (Base) casing with a D65mm diameter, these modules are engineered for projects ranging from amusement park buildings to architectural media facades.
The device is a point-source lighting module with individually addressable LEDs and a larger 65mm diameter casing (D65mm x H78mm). The system uses 6 high-output RGBW LEDs and an on-board UCS2904 control IC to provide dynamic color output at the pixel level across large-scale installations. All of this is managed by a single DMX512/SPI-based control system.
Every cell works on its own, separate from the others. This means that hundreds or thousands of nodes can have smooth curves, movements with multiple zones, and patterns that are all in sync with each other without messing things up. With a 360° beam angle and an IP67 waterproof grade, this module is built to withstand harsh outdoor environments while delivering stunning visual effects.
The module operates on DC24V, features a 3W power consumption, and offers a remarkable 50,000-hour lifespan, making it an ideal choice for Building Facades, Amusement Parks, Holiday Lighting, and Stage Decoration.
| Parameter | Details |
|---|---|
| Part Number | XXA-6506ICRGBW-50 |
| Housing Diameter | 65mm |
| LED Type | SMD5050 RGB+ Filament white |
| LED Quantity per Unit | 6 LEDs + 2 Filament white |
| Power per LED | 2.1W |
| Voltage | DC24V |
| IC Protocol | UCS2904 |
| Housing Finish | Clear / Milky |
| Beam Angle | 360° |
| Waterproof Grade | IP65 / IP67 |
| Drill Hole | 19mm |
| Housing Material | PC (Transparent) + ABS (Base) |
| Color | RGBW (3000K) |

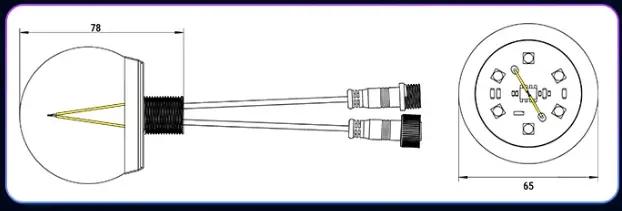

| Product Size | D65mm x H78mm |
| Custom Lead Time | 7–10 days |
Unlike conventional SMD pixel lights that use a standard cool/neutral white channel, this 65mm module integrates a tungsten-style warm white (3000K) channel alongside its RGB output. The result is a softer, more continuous spectrum that delivers richer color rendering and a natural, amber-toned warmth at low dimming levels—no harsh "clinical" white or color shift in dark scenes. When transitioning from vibrant RGB effects to white, the warm white blends seamlessly with reds, ambers, and oranges, keeping dynamic runs and gradients visually cohesive.
Combined with 6 high-output RGBW LEDs, a UCS2904 IC, 360° beam angle, and IP67 waterproof housing, it's built for immersive stage decoration, amusement parks, and architectural facades where light quality matters as much as brightness.

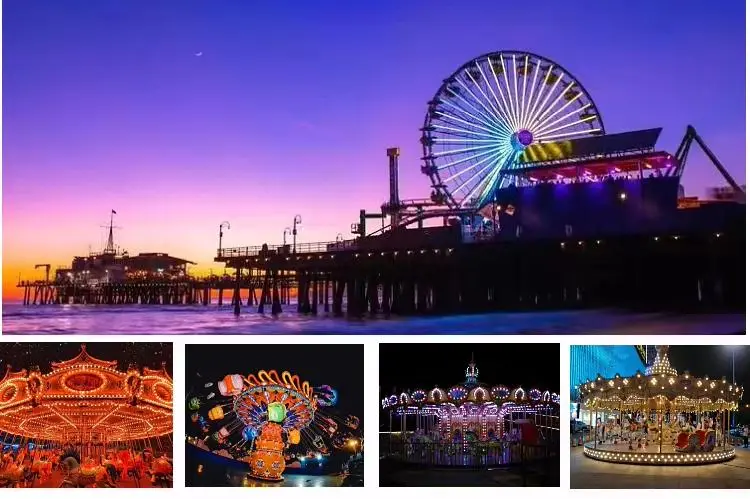

Amusement parks and theme parks
Ferris wheels, carousel structures and ride outlines require durable, weather-resistant lighting. These 65mm modules feature an IP67 waterproof grade and robust PC+ABS housing, ensuring reliable operation under outdoor conditions and mechanical stress in permanent installations.
Architectural Media Facades
Buildings serving as low-resolution display panels must operate reliably over varied climates. With an operating temperature range of -20°C to +50°C and a 360° beam angle, these lights deliver consistent, vivid RGBW (3000K Warm White) output for large-scale architectural mapping and dynamic wall-washing.
Stage Decoration and Event Lighting
Concert stages and immersive event spaces demand precise color control and smooth transitions. The integration of the UCS2904 IC with DMX512/SPI protocol allows for seamless pixel-level addressing, creating smooth gradients, chasing effects, and synchronized ambient lighting across massive node arrays.
ElisaLED was founded by Elisa, who has worked in the LED industry since 2016. That product-level experience is reflected in how customization requests and technical questions are handled.
OEM and ODM support covers PCB layout, IC protocol selection, housing configuration, cable length, connector type, and packaging — allowing the product to be matched to specific project requirements rather than adapted from a generic module.

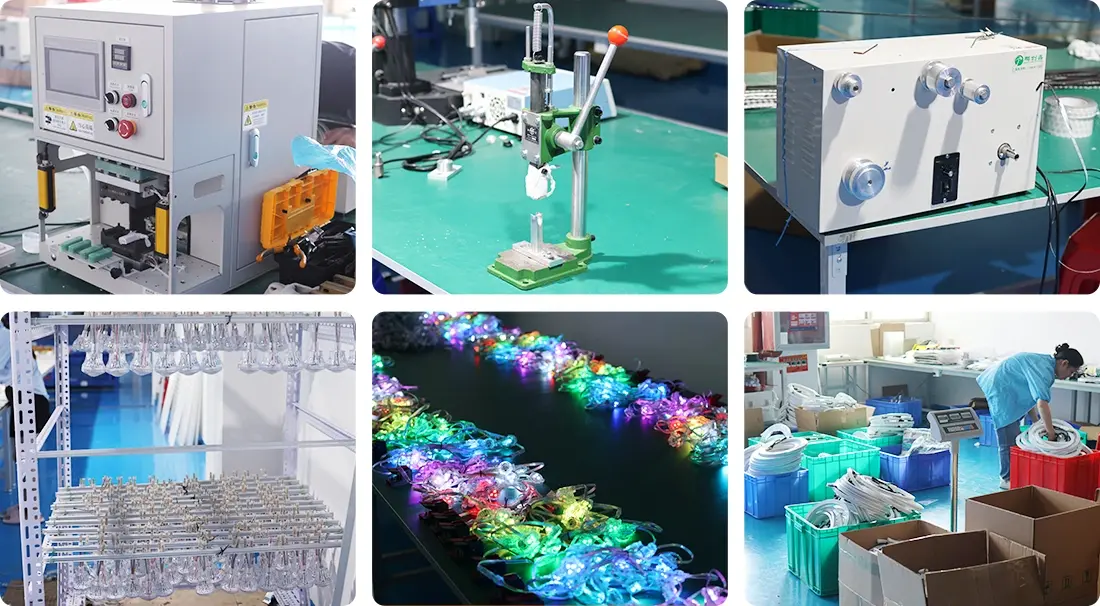

Quality control includes 48–72-hour aging tests at 100% load, vacuum IP68 immersion testing, integrating sphere photometric testing, salt spray testing (ISO 9227), and tensile strength testing on silicone cables.
Turnaround for standard stock is 3–5 days. Custom orders are typically completed in 7–10 days. Technical and commercial inquiries receive a reply within 24 hours.
Voltage drop is a practical concern in any large pixel array of the 65mm LED Filament Pixel Light and should be factored into wiring design before installation.
Operating on a DC24V system, power injection is generally recommended every 40–60 pixels, depending on wire gauge and run length. Compared to DC12V systems, this allows longer intervals between injection points, significantly reducing the number of power feeds needed across a large facade.
For signal reliability, break-point continuous transmission keeps the remaining pixels active even when a single IC fails. This is highly relevant for permanent installations where physical access for maintenance is restricted.
Standard configurations feature a 6-LED RGBW variant, DC24V input, and the UCS2904 control protocol. For projects with specific requirements, available customization options include:
Samples are available for evaluation before bulk orders are confirmed.
Q: What is the difference between RGB and RGBW in pixel lighting?
A: RGB uses red, green, and blue channels to produce color-changing effects. RGBW adds a dedicated white channel, making it possible to output both dynamic color scenes and clean white light from the same unit without mixing all three primary colors. The 65mm pixel lights on this page feature an RGBW 4-in-1 configuration (with a 3000K warm white channel), offering superior color rendering and richer whites than standard RGB.
Q: What control protocol does this 65mm pixel light use?
A: This module is equipped with the UCS2904 control IC and supports DMX512/SPI protocols. It allows for individually addressable pixel-level control, enabling smooth animations, gradients, and synchronized effects across large arrays.
Q: How do I manage signal integrity across a large pixel array?
A: Versions with break-point continuous transmission include a backup data line that keeps downstream pixels active if one node fails. This significantly reduces the impact of individual IC faults in large, hard-to-access installations like building facades.
Q: What voltage should I specify for a large outdoor installation?
A: DC24V is highly recommended and is the standard for this 65mm model. DC24V reduces the frequency of power injection points needed along a run (typically every 40-60 pixels), which simplifies wiring on large facades and minimizes voltage drop.
Q: What should I verify before specifying pixel lights for an outdoor project?
A: Key factors include waterproof rating, operating temperature range, UV resistance of the housing, control system compatibility, and wire gauge. This 65mm module is built for outdoor harsh environments with an IP67 rating, a -20°C to +50°C operating range, and a robust PC (Transparent) + ABS (Base) housing.
Send project details — including application, quantity, and voltage requirement — to inquiry@elisaled.com. We reply within 24 hours for 26mm LED Pixel light.
