MINI Pixel Pebble String Light
10cm length between each light
Sample available
Lead Time: 5-7days
Sample available
Lead Time: 5-7days

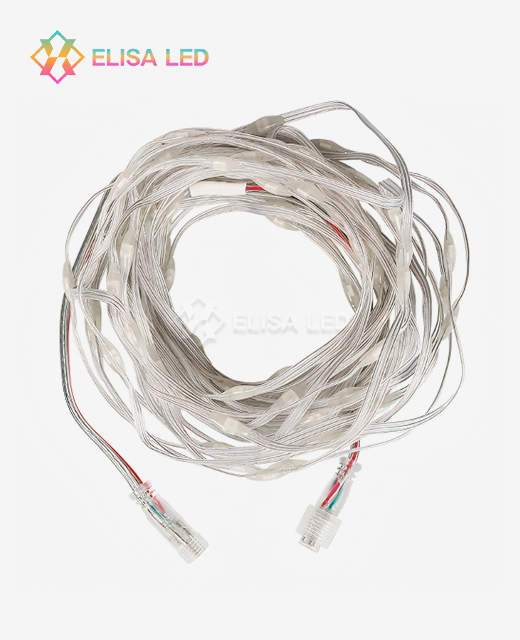

The MINI Pixel Pebble String Light is an addressable LED string built around ultra-compact, pebble-shaped nodes encapsulated in high-transparency resin. Each string has 100 independently controlled pixels using SK6812 RGB/RGBW protocol. Operating on DC 5V or 12V at 0.01W per node. This string has a node dimension of L10×W6 mm and 10 cm spacing, making it ideal for projects that need pixel level control, physical flexibility and low visual profile all at once.
Standard ornamental string lights provide uniform, non-addressable output. The pebble-shaped resin node on this product emits light at a complete 360-degree beam angle, reducing the point-source effect and making each node read as a smooth, ambient element, not a harsh LED dot.
Each node has an IC chip embedded right into the encapsulation, allowing for pixel-level control without the need for a driver board at each node. The flexible string form factor is able to wrap around uneven surfaces such as curved facades, window frames, tree branches and canopy structures where stiff bar or neon strip lights can not follow the contour.
The 100-node arrangement with standard 10cm spacing creates a 10 metre string per unit, a useful length for architectural accent runs and display installations.
| Parameter | Detail |
|---|---|
| Part Number | XXA-STRING-MINI0610 |
| Node Dimension | L10 × W6 mm |
| LED Protocol | SK6812 RGB / RGBW |
| LED Type | 1× SMD RGB/RGBW LED per node |
| Voltage | DC 5V / 12V |
| Power per Node | 0.01W |
| Nodes per String | 100 pcs |
| Node Spacing | 10 cm |
| String Length | ~10 meters |
| Sample Lead Time | 5–7 days |
The node housing is made of PU or epoxy resin, with UV stabilisers to prevent down yellowing in prolonged sun exposure. Multi-strand or silver-plated copper wire, selected for conductivity and the capacity to withstand repeated flexing, is used within the cabling. During quality control the junction of the wire to the node is checked under mechanical load to verify that it holds through installation handling.
Depending on the variation, vacuum-infusion encapsulation achieves IP67 waterproofing. The operational temperature range is -20°C to +60°C, for indoor or outdoor usage year-round.
ElisaLED carries out four inspection procedures before shipment.
Thermal shock: Units are cycled between -40°C and +80°C to ensure the resin to wire bond is maintained under temperature stress.
Salt spray testing (ASTM B117) tests the corrosion resistance of internal circuitry – useful for coastal and marine-adjacent installations.
The tensile strength analysis checks the connection node to the wire under mechanical loads reflective of real installation conditions.
Strings are operated at full brightness for 72-hour continuous burn-in runs to check IC stability and heat dissipation prior to shipping.

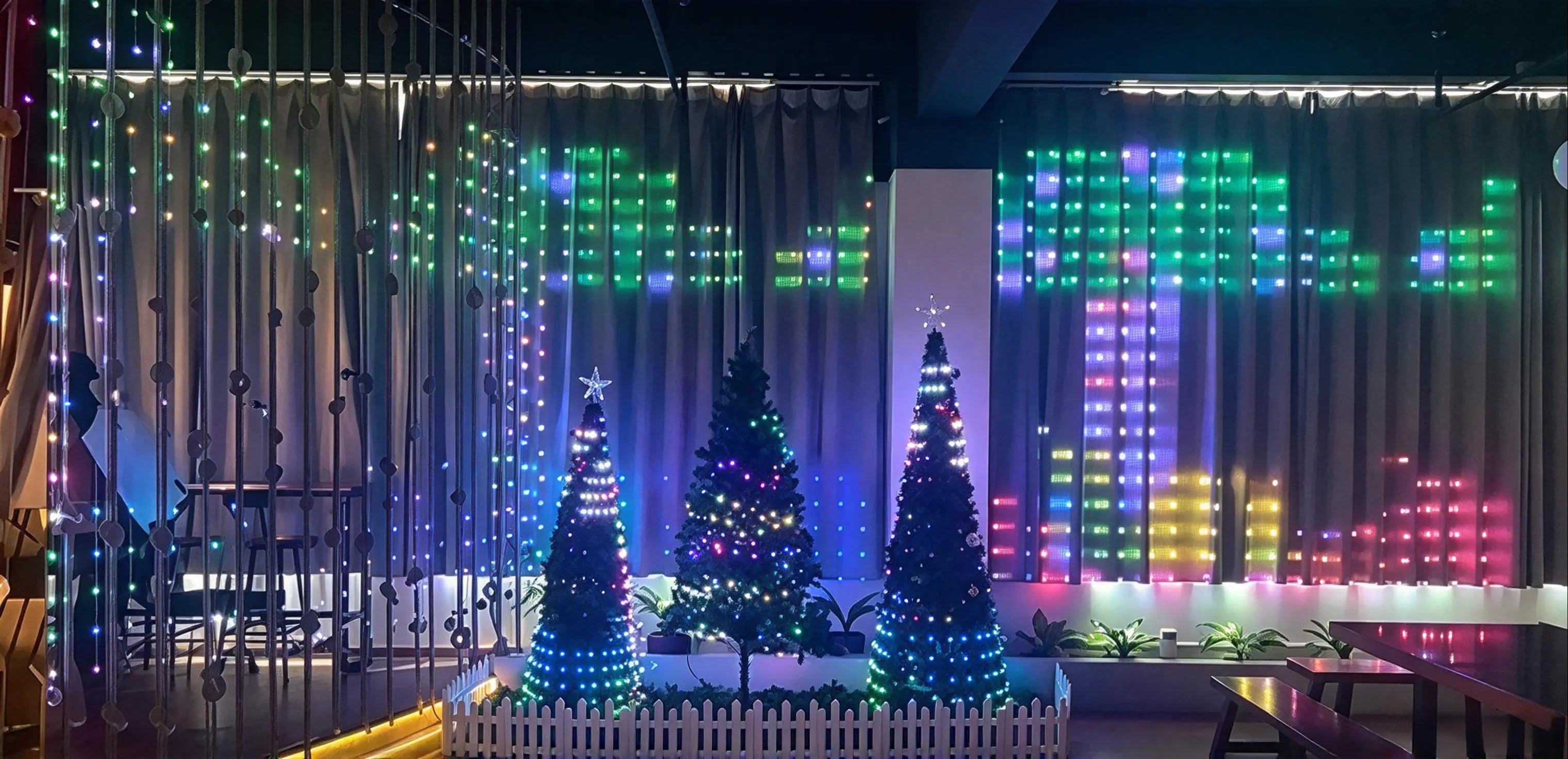

Architectural façade contouring: The flexible string follows complicated geometrical shapes where the inflexible neon or bar lights are not able to follow the surface.
Commercial and theme park displays These strings can be built into 3D pixel matrices or curtain effects for large scale B2B installations for outdoor areas.
High-end retail window displays The L10×W6 mm node profile fits into tight or decorative retail environments with no obvious hardware clutter.
Stage and event lighting: Individual addressability allows for chasing, fading and synchronised animation effects driven by standard SPI controllers such as the T-1000S, Art-Net nodes or DMX512 decoders.
These strings for MINI Pixel Pebble String Light work with standard SPI controllers. Compatible systems include T-1000S, Art-Net, and DMX512 via decoders — no proprietary hardware is required.
For longer runs we recommend powering every 5-10 meters depending if you are using the 5V or 12V variant to keep consistent brightness across the entire string.
The parallel-signal version (breakpoint resume) allows the string to continue in the event of node failure. IP68 heat-shrink connectors allow individual nodes to be replaced, reducing maintenance labour on permanent installations.
The nodes are 10 cm apart. Custom manufacture can be spaced down to 3cm for visual displays with higher resolution.
ElisaLED offers OEM/ODM service including PCB design, LED chip selection, controller IC option, housing, wiring, packaging. Allows for project specified spacing, voltage, connection type or container branding. Samples are available with 5-7 days lead time. Discuss project requirements and production schedules directly with the team.
Q: What makes this product different from other string lights?
A: This product adopts small pebble-shaped addressable nodes, and is developed for refined and low-profile decorative effects with full pixel-level control. Other string light formats exist for other aesthetic and practical goals and may not have the same node shape or addressability.
Q：Are the nodes individually addressable?
A：Yes. Each node contains an integrated IC, allowing independent control of color and brightness at the pixel level via standard SPI protocols.
Q：Which controller protocol is required?
A：These strings are compatible with standard SPI controllers including T-1000S, Art-Net, and DMX512 via decoders.
Q：What should be reviewed before specifying this product?
A：Key considerations include IP rating, voltage and power supply capacity, control system compatibility, node spacing and total string length, cable and connector protection method, mounting approach, and the operating environment.
Q：Can a single failed node be replaced on-site?
A：Yes. The breakpoint resume version keeps the string running when one node fails. Individual nodes can be spliced using IP68 heat-shrink connectors for on-site repair.
Q：Is custom node spacing available?
A：Yes. Standard spacing is 10 cm. Custom manufacturing supports spacing down to 3 cm for higher-density display applications.
Send project enquiries or sample requests to inquiry@elisaled.com. The team will respond with availability and lead time details for MINI Pixel Pebble String Light.
