WGP1818 12V LED pixel mesh
Model No.: XXA-WGP1818
pitch: P50/P10
Sample available
Lead Time: 5-7days
pitch: P50/P10
Sample available
Lead Time: 5-7days
The WGP1818 12V LED pixel mesh is an individually addressable RGB lighting grid designed for architectural facades, stage productions, and large-scale media installations. Each pixel node of 18 mm x 18 mm comprises three SMD 3535 LEDs with UCS5603A IC for DC 12 V driving, providing 0.72 W programmable RGB output per pixel. The mesh construction with cutouts maintains the assembly lightweight and clear, ideal for contractors, system integrators and lighting designers on demanding B2B projects.
It is a modular LED matrix with individually addressable pixels, and it is versatile. The mesh structure is constructed from flexible, UV-resistant, and flame-retardant (V-0 grade) cables, and has a PC casing, which means it may bend, curve or drape across complicated architectural surfaces without interrupting the circuit.
The core of the design is the UCS5603A IC, which support the transmission line of dual-signal breakpoint. If a single pixel fails, the signal immediately reroutes around it, so the rest of the string continues to work. This behaviour limits unscheduled maintenance callouts generated by a single damaged node for installations at height or in places with limited physical access.
| Parameter | Details |
|---|---|
| Part Number | XXA-WGP1818 |
| LED Type | 3 × SMD 3535 RGB |
| IC / Protocol | UCS5603A |
| Voltage | DC 12V |
| Power per Pixel | 0.72 W |
| Pixel Dimension | 18 mm × 18 mm |
| Pixel Pitch | P50 / P10 |
| Grayscale Level | 256 – 65,536 levels |
| Refresh Rate | ≥ 2,000 Hz |
| Operating Temperature | −40 °C to +70 °C |
| Waterproof Rating | IP67 / IP68 |
| Housing Material | UV-resistant, flame-retardant PC (V-0) |
| Signal Protocol | SPI (dual-line) |
| Sample | Available |
| Lead Time | 5–7 days |
Stable 12V Operation
Running at DC 12V rather than 5V reduces current draw for the same wattage. This lowers voltage drop across long wire runs, which translates to fewer power injection points and a simpler wiring layout — a practical benefit on large facade projects covering wide surface areas.
Dual-Line Breakpoint Resume
The UCS5603A has a two wire signal circuit, the second data line is a standby channel. This does not break the chain and helps to maintain the continuation of the show in projects where physical access for repairs is limited, e.g. skyscraper curtain walls or bridge constructions.
High Refresh Rate for Camera-Facing Displays
With a refresh rate exceeding 2,000 Hz, the mesh produces flicker-free output suitable for broadcast and live recording environments, where rolling bands caused by lower refresh rates are a known issue.
Wide Grayscale Range
Supporting up to 65,536 grayscale levels, the pixel mesh for WGP1818 12V LED pixel mesh handles color transitions and dimming curves smoothly, including at low-brightness settings where banding is more visible.

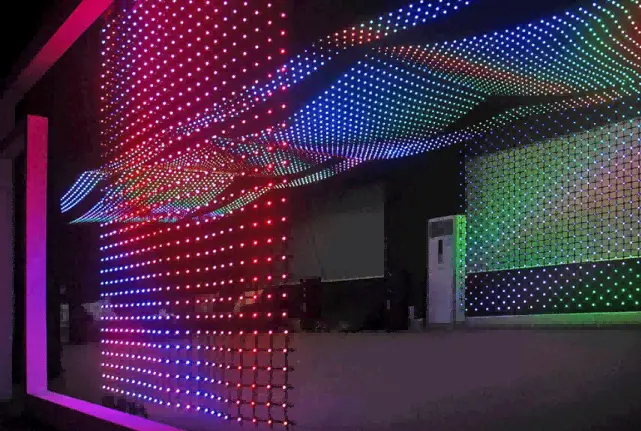

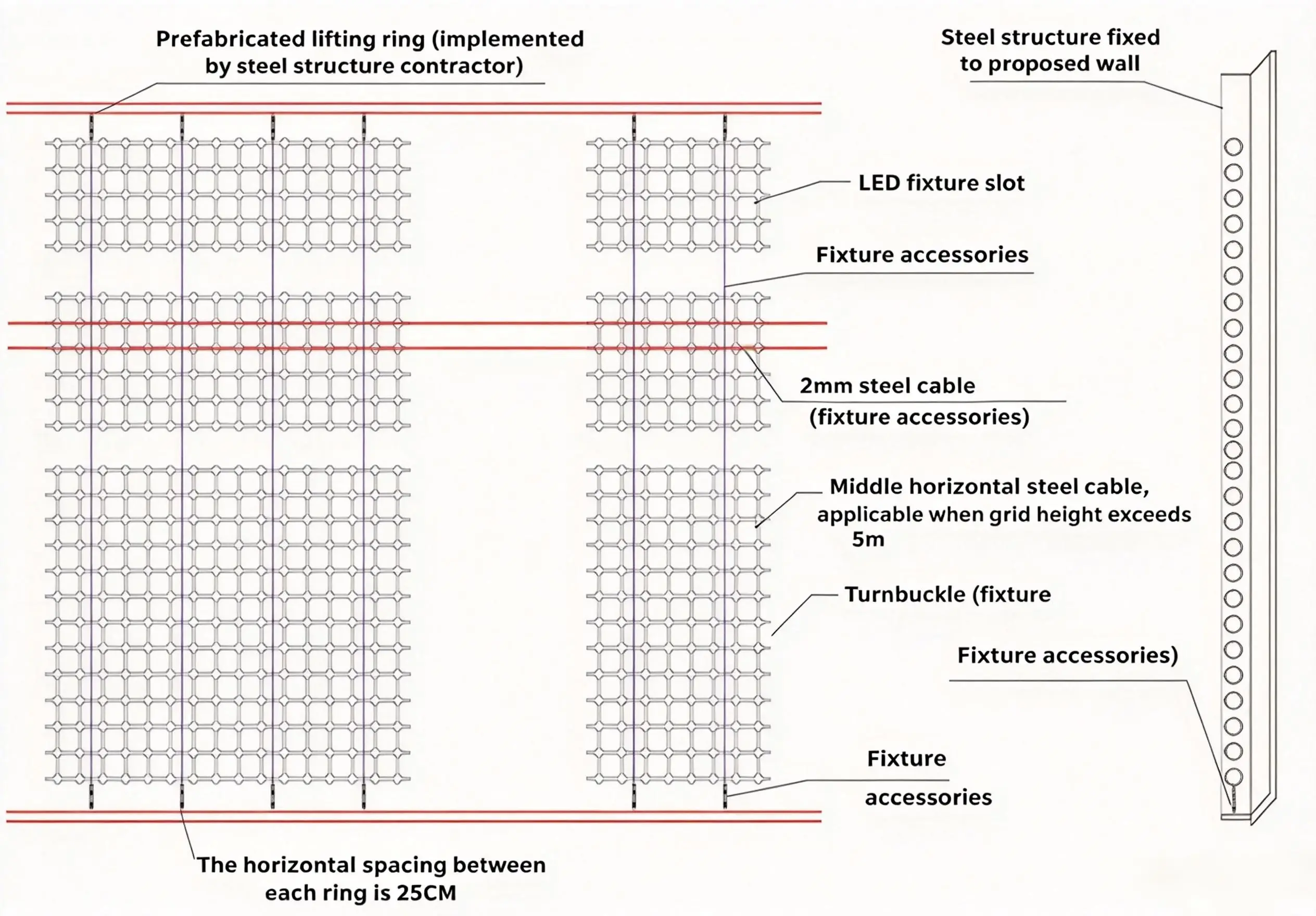

Architectural Media Facades
Its light weight, mesh and great transparency mean it may be installed on glass curtain walls without limiting the light inside or adding much structural burden. The 12V supply voltage gives uniform operation over wide contiguous areas.
Stage and Concert Backings
The flexible mesh can be draped, stretched or sculpted into three dimensional formations for video content and dynamic lighting. The modular structure also makes it easy to pack up and redeploy between places.
Bridge & Infrastructure Lighting
With an IP67/IP68 rating and breakpoint resume feature, it may be relied on to continue to operate in coastal or high vibration situations over time. Both qualities are related to failure modes seen with regular LED strip goods under similar settings.
Other appropriate applications include store window displays, exhibition media walls and accent lighting for building perimeters.

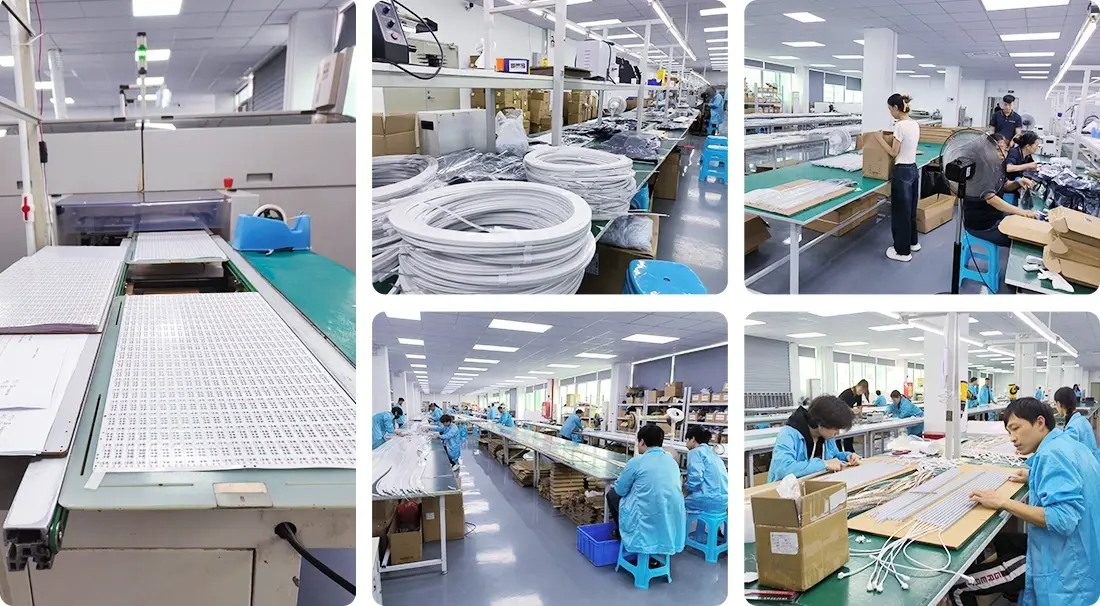

Each production batch goes through a structured inspection protocol before shipping:
ElisaLED offers OEM/ODM services for PCB design, LED chip choices, controller IC alternatives, housing, wiring and packaging. The team has about 10 years of expertise in the LED sector and serves customers from over 50 countries. Custom order enquiries are responded to within 24 hours.
Q: What is the product?
A: It is a flexible, individually controllable RGB grid that can be sliced and shaped, for large scale programmable video and dynamic lighting displays on curved or irregular surfaces.
Q：What's the advantage of WGP1818 for outdoor installation?
A: With an IP67/IP68 waterproof rating, V-0 flame-retardant PC enclosure, and operating range from −40 °C to +70 °C, it can cover the typical circumstances for outside architectural and infrastructural projects.
Q：Can this mesh show video and animations?
A: Yes. Used with a suitable pixel controller and video mapping software it can display video, animations, text and dynamic patterns with pixel level control.
Q：What pixel pitch options are available?
A：The WGP1818 is available in P50 and P10 pitch configurations. Pitch selection affects viewing distance and pixel density requirements for a given installation.
Q：What should be reviewed before specifying this product?
A: Things to consider include: pixel pitch and density, IP rating, supply voltage and power distribution, control system compatibility, mounting method, cable routing, wind load for outdoor use and maintenance access.
Q：Is the WGP1818 compatible with DMX controllers?
A：The WGP1818 uses SPI protocol. A DMX-to-SPI decoder is required to connect it with DMX512 lighting consoles.
Send your project requirements to inquiry@elisaled.com. Samples are available and the team responds within 24 hours for WGP1818 12V LED pixel mesh.
