200LEDs 12V Pixel WS2815 RGBW
No MOQ, Lead Time: 10-15days
Brightness: 2160lm
Angle: 120°
IP Rating: IP20
Brightness: 2160lm
Angle: 120°
IP Rating: IP20

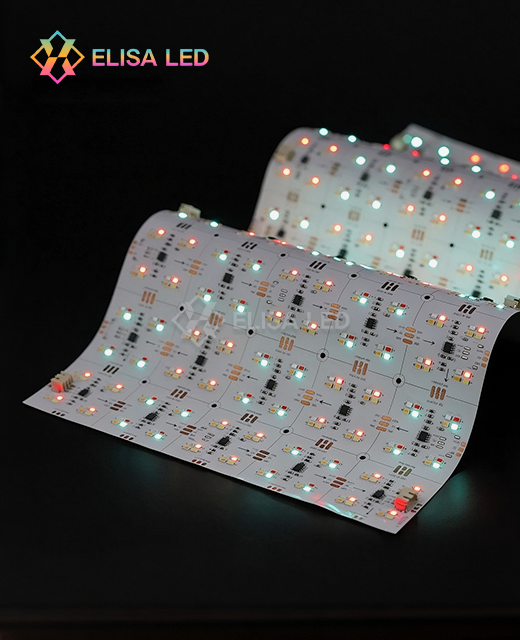

The 200LEDs 12V Pixel WS2815 RGBW LED sheet is a 480×240mm addressable panel built around 200 individually controllable 5050 SMD LEDs and 50 WS2815 ICs. It runs on DC12V and draws 60% less current vs. similar 5V systems which translates to longer runs and fewer power injection points. The dedicated white channel provides clean white output without RGB mixing, and the WS2815 dual data line means the signal chain is not broken if an individual LED fails.
Standard RGB sheets mix red, green, and blue to approximate white — a compromise that affects color accuracy and increases energy use whenever white is needed. This sheet adds a fully independent white channel in the IC frame, giving you clean white output from a single dedicated emitter.

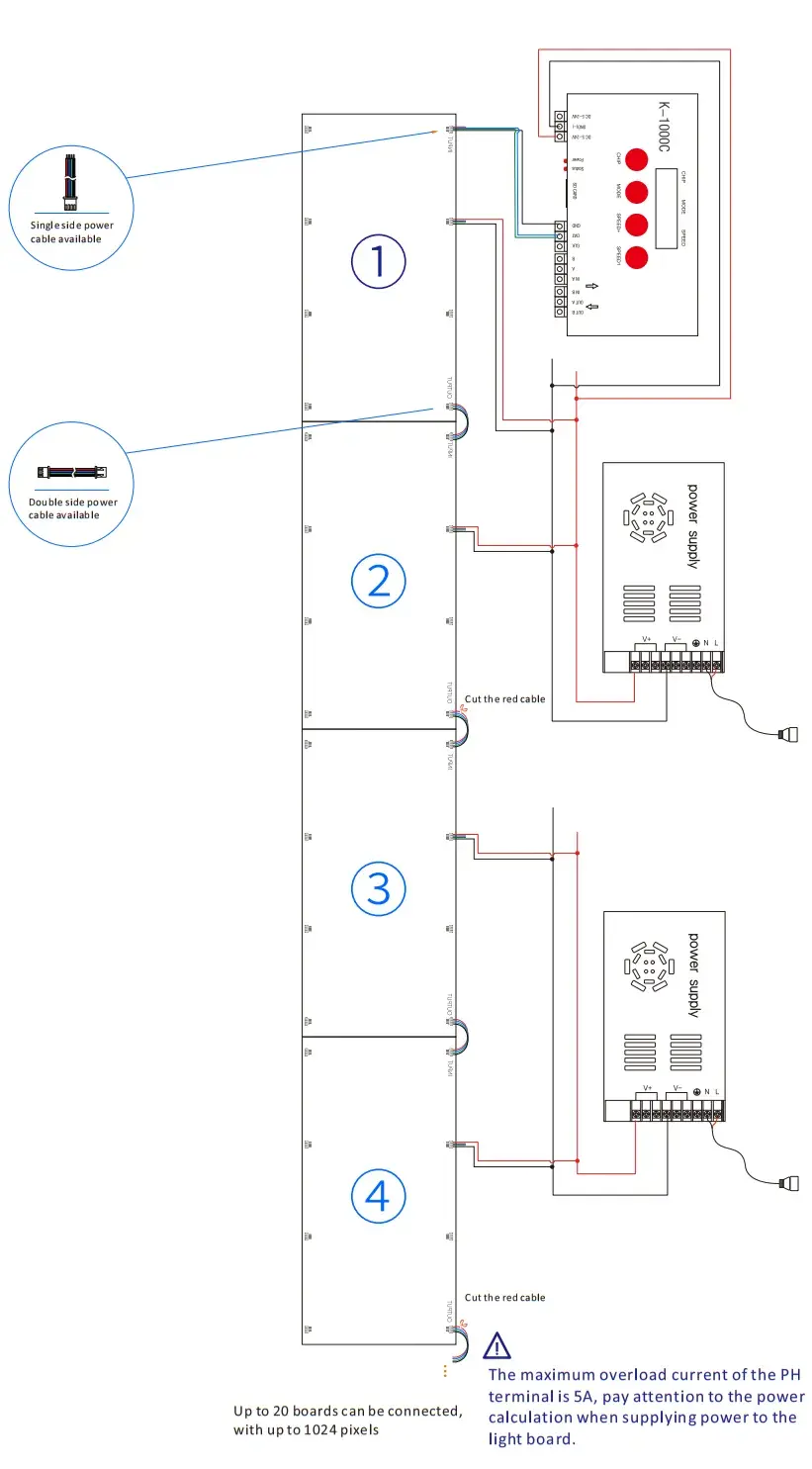

The 12V architecture keeps current low across the full 200-LED string. That single design decision leads to thinner wiring requirements, fewer injection points across long runs, and simpler overall installation planning.
The WS2815 IC carries two data inputs. If the primary data line is interrupted by a failed LED, the backup line picks up from the last working pixel and the rest of the sheet continues running normally.
| Parameter | Details |
|---|---|
| Part Number | XXA-SHEET-200D5050RGBW-WS2815 |
| Voltage | DC 12V |
| LED Quantity | 200 LEDs |
| IC Quantity | 200 ICs |
| LED Type | 5050 SMD RGBW |
| Power | 48W/m |
| Dimension | 480 × 240mm |
| Brightness | 2160lm |
| Beam Angle | 120° |
| IP Rating | IP20 |
| Data Transfer Rate | 250kbps – 1Mbps |
| Operating Temperature | -40°C to +85°C |
| LED Lifespan | 50,000+ hours |
| MOQ | No MOQ |
| Lead Time | 10–15 days |
The WS2815 IC has 2 inputs for data, one main line and a secondary line. In normal functioning, data passes via the principal route pixel by pixel. If one LED fails or the main data line is physically broken, the backup line takes the signal from the last working pixel and passes it on. The other LEDs in the chain continue to operate without problems.
This behaviour is confirmed in production. Technicians manually deactivate specific pixels and check the signal still passes through the rest of the LEDs. That redundancy mitigates a serious operational risk for live events or broadcast situations or permanently installed architectural projects.

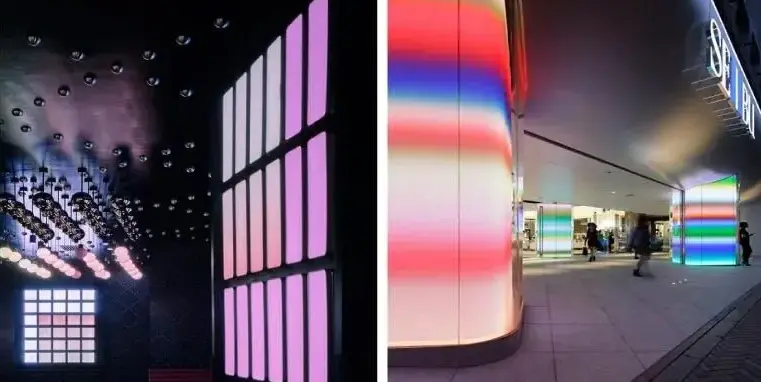

Architectural Media Facades
The 12V architecture allows for longer serial runs and fewer power injection locations. The dedicated RGBW white channel delivers a clear white output that ordinary RGB panels can’t match with the same consistency for detailed architectural work.
Professional Stage & Broadcast
The dual signal redundancy guarantees that a single point of physical damage to the installation will not take down the complete show during a live performance or broadcast.
Automotive & Marine Environments
Vehicles and maritime boats commonly use 12V electrical systems. The WS2815 integrates seamlessly into such surroundings and the dual data line protects signal integrity in electrically loud circumstances where interference is widespread.
Commercial Interior Lighting
Retail displays, hospitality ceilings, and branded environments benefit from programmable animation combined with dedicated white output for product illumination or ambient lighting for 200LEDs 12V Pixel WS2815 RGBW.
High-Low Temperature Cycle Test – IC and phosphor stability is checked over the whole -40°C to +85°C working range, in line with expected outdoor and vehicle deployment settings.
Dead Pixel Redundancy Check – Each backup data channel is physically confirmed by deactivating a pixel and ensuring continued signal flow via remaining LEDs.
Voltage Drop Analysis - Before shipping, engineers assess voltage drop throughout the whole 200-LED string to determine proper power injection needs.
Salt Spray Test — Used on sheets for coastal or high humidity settings.
Spectrophotometer Testing — CCT consistency of the white chip is measured across production batches to prevent visible color variation between panels.
ElisaLED supports customization across PCB design, LED chip selection, controller IC, housing, wiring configuration, and packaging. Inquiry responses are provided within 24 hours. Contact inquiry@elisaled.com to discuss your project requirements.
Q: What is the difference between the product and the 800LEDs 24V Pixel WS2814B RGBW?
A：The product uses dual data lines for signal backup — if one LED fails, the remaining LEDs continue running. The WS2814B operates at 24V with higher LED density and is better suited to large-scale installations where managing voltage drop over distance is the primary concern.
Q: What is the main advantage of WS2815 over WS2814B?
A：WS2815 includes a backup data line. If one LED fails in the chain, the signal routes through the backup path and the rest of the sheet continues operating. WS2814B does not offer this signal redundancy.
Q: Why use 12V instead of 5V addressable LEDs?
A：12V reduces current by roughly 60% for the same wattage output. That translates to thinner wiring, longer runs without significant voltage drop, and fewer power injection points — each of which reduces installation complexity.
Q: What power supply do 200 LEDs require at full output?
A：At full RGBW output, each pixel draws approximately 0.3W–0.4W. A 200-LED sheet requires an 80W–100W 12V DC power supply to operate within safe limits with adequate overhead.
Q: Can I use a WS2812B controller with this sheet?
A：Not directly. This sheet requires a controller that supports 4-channel RGBW timing and 12V data logic. A standard WS2812B controller is designed for 3-channel RGB and is not compatible with the WS2815 RGBW protocol.
Q: What should I verify before selecting a pixel LED sheet?
A：Key factors include IC type and communication protocol, operating voltage, LED density and panel dimensions, RGB versus RGBW output requirements, single versus dual data signal design, controller compatibility, heat dissipation approach, and the specific demands of the installation environment.
Send your project details or technical questions to inquiry@elisaled.com. Our team reviews all inquiries and responds within 24 hours for 200LEDs 12V Pixel WS2815 RGBW.
