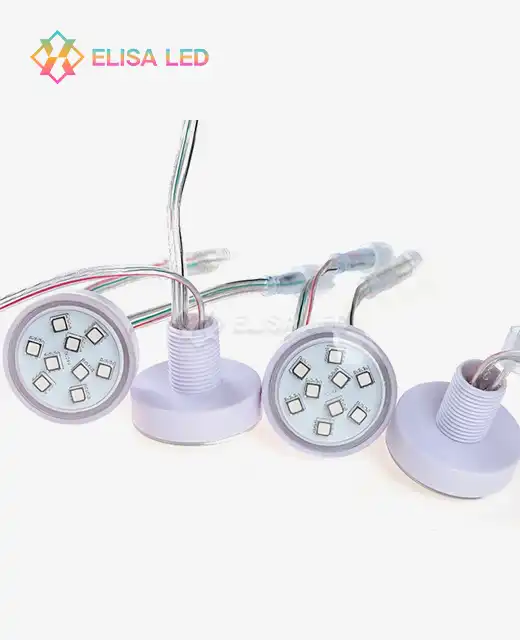

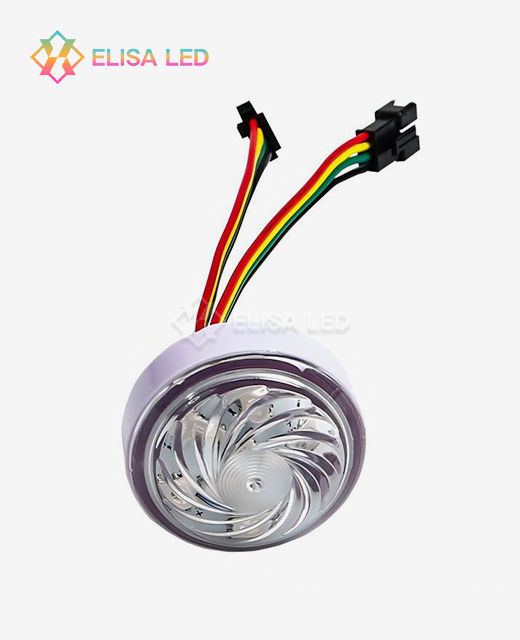

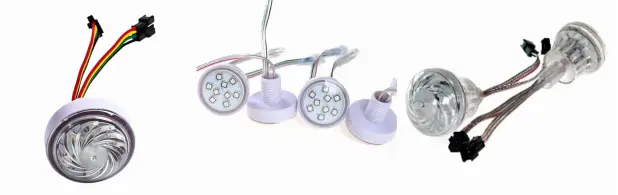

45mm LED Pixel light
Model No.: XXA-456/459/4512S-360D
0.24w/led
clear flat/ spiral cap
Free sample available
Lead Time: 3-5days
0.24w/led
clear flat/ spiral cap
Free sample available
Lead Time: 3-5days
Outdoor lighting projects involving large facades, amusement rides, or commercial signage face a consistent set of problems: dark spots across wide surfaces, high maintenance costs on elevated installations, and signal degradation over long cable runs. The 45mm LED Pixel light from ElisaLED is built to address these directly. Each unit uses SMD5050 RGB LEDs, UCS1903 or GS8206 IC protocols, and runs on DC24V — available in 6, 9, or 12 LED configurations at 0.24W per LED.
The device is a point light source where each pixel is individually programmable, meaning that every single point may be controlled for colour, brightness and timing separately. This allows for intricate video animations, colour chasing effects, and synchronised patterns to be shown on curved or uneven building surfaces where standard LED displays can’t be mounted.
The 45mm housing diameter is a good compromise between pixel pitch and surface transparency. That is why the style is often employed for media facades on tall buildings, amusement park ride structures and large-scale branded signs.
| Parameter | Details |
|---|---|
| Part Number | XXA-456/459/4512S-360D |
| Diameter | 45mm |
| Mounting Hole | 19mm |
| LED Type | SMD5050 RGB |
| LED Quantity | 6 / 9 / 12 LEDs (12-LED version: front 8 + back 4) |
| Power | 1.44W /2.16W /2.88W |
| Voltage | DC24V |
| IC Protocol | UCS1903 / GS8206 |
| Beam Angle | 120°–160° |
| Waterproof Rating | IP65 / IP67 |
| Operating Temperature | -40°C to +60°C |
| Cap Style | Clear Flat / Spiral |
Individually Addressable RGB Control
The UCS1903 and GS8206 IC protocols drive each pixel and provide complete control of colour, brightness and animation timing for each pixel individually. This allows for seamless video playback, colour chasing and synchronised effects across wide arrays of pixels.
Wide Beam Angle for Full Visibility
The 120°–160° beam angle means the display is readable from numerous viewing angles, not just head-on — an important factor for facades and signs seen from street level or at a distance.
Dual-Signal Break-Point Transmission
The pixel string employs two signal lines. If one pixel fails, the signal will skip that pixel and go to the next unit, keeping the remainder of the string running.
Extended Distance DC24V
DC24V injects electricity per 30 pixels rather than the more frequent intervals of DC12V systems. This simplifies the wiring complexity and keeps the brightness constant over longer lengths.
Choice of 6, 9, or 12 LEDs per Pixel

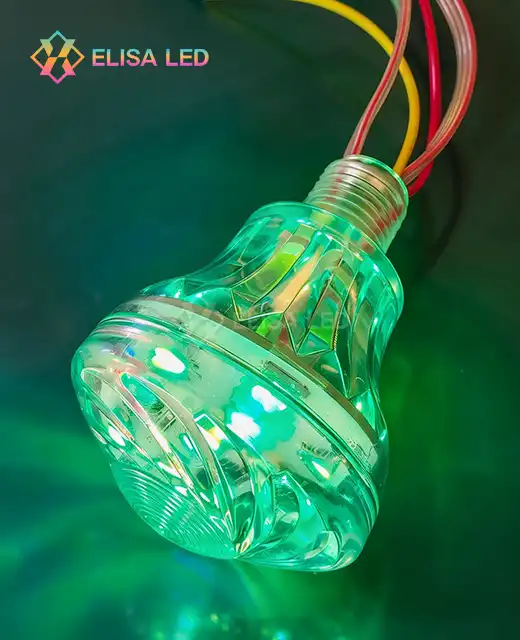

The 12 LED variant has 8 front facing and 4 rear facing LEDs for 360° light output. This is perfect for installations where the pixel is seen from various sides like free standing buildings or ride frames.

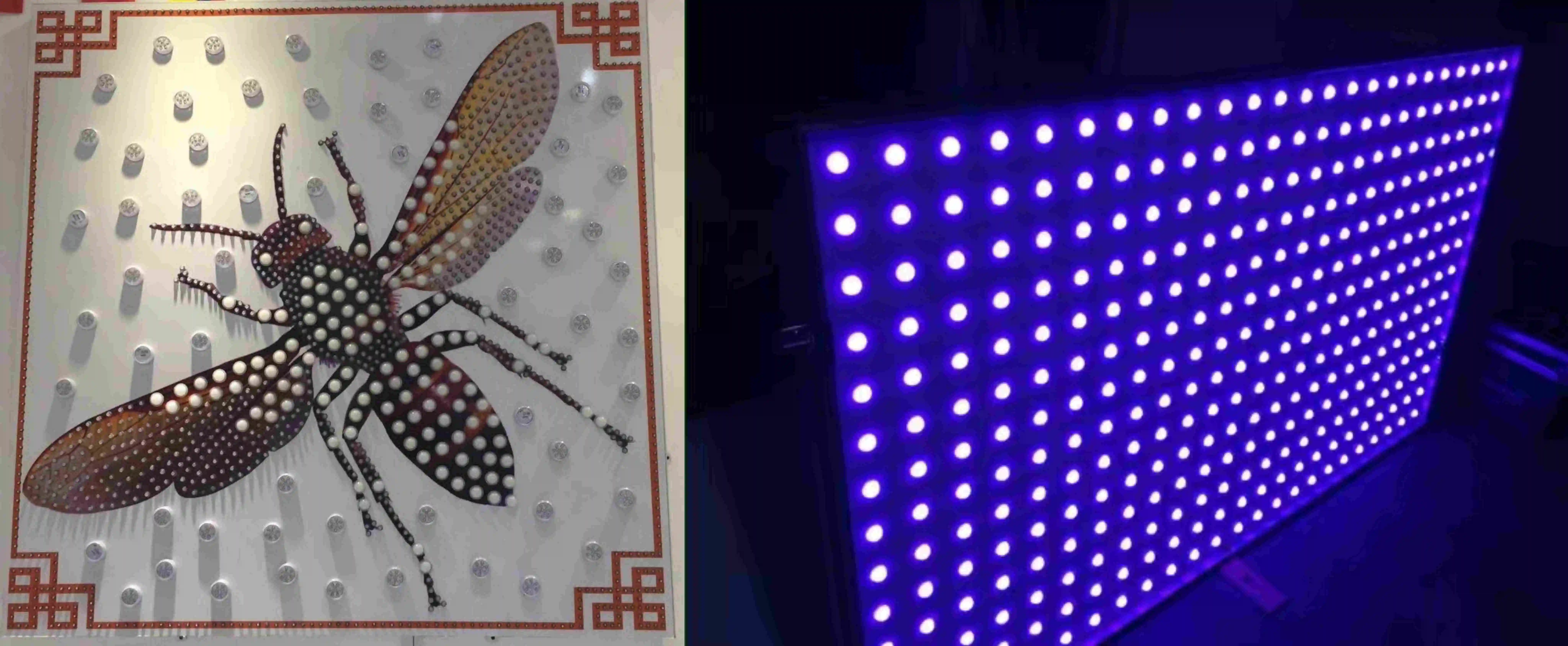

Architectural Media Facades
Big building exteriors may operate as low-resolution television screens with pixels spread throughout the facade. It's enough interpixel spacing to allow transparency on the surface, but still has visual influence on viewing distance.

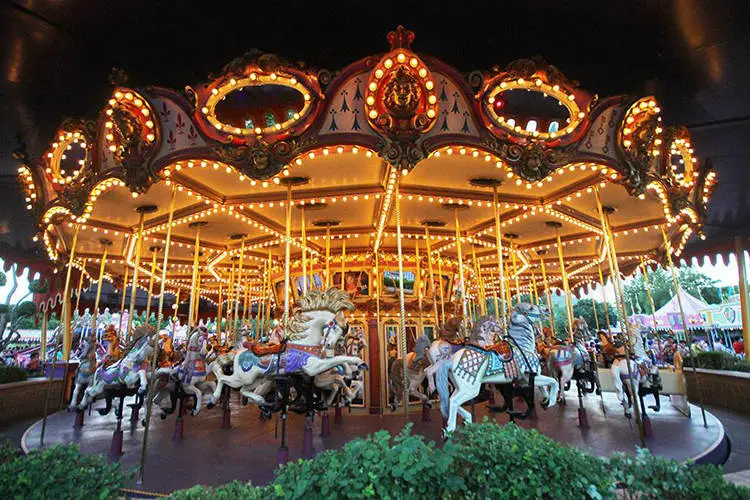

Amusement Parks & Rides
These pixels are attached to riding structures and are subjected to vibration, repetitive mechanical stress and prolonged UV exposure. The IP65/IP67 certification and the -40° C to +60° C operation range meet the environmental requirements of these locations.

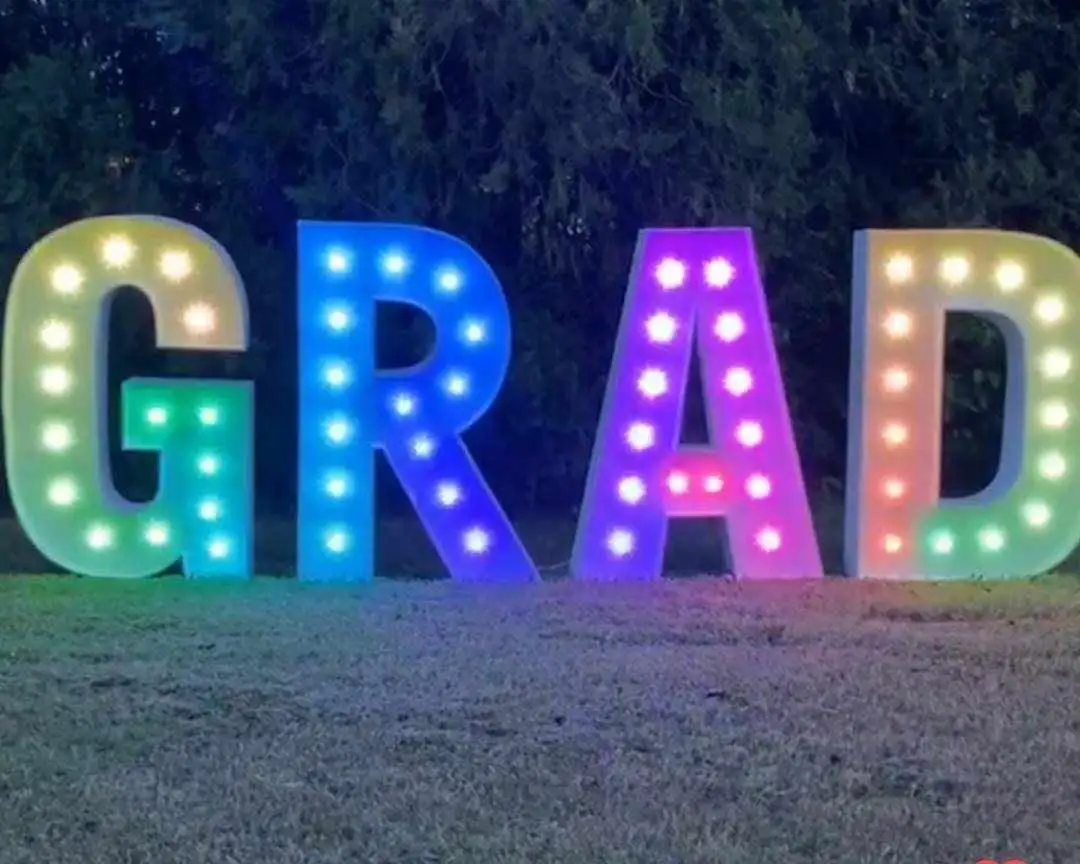

Commercial Signage and Channel Letters
For huge outdoor branding, the even spread of light in deep letter returns minimises the patchy brightness associated with lower power point sources.
Video Software Integration
These pixels for 45mm LED Pixel light are compatible with Madrix, Resolume, and other LED mapping software when paired with Art-Net or SD card controllers.
Every production batch goes through a testing process before shipment:
ElisaLED offers customization covering PCB design, LED chip selection, IC protocol, housing color, cap style (flat or spiral), wiring configuration, and packaging. Standard samples ship in 3–5 days, and free samples are available on request. Custom orders are produced within 7–10 days.
With nearly 10 years of experience in the LED industry and customers across 50+ countries, ElisaLED supports projects from early design consultation through after-sales service.
Q：What does individually addressable mean for a pixel light?
A: It implies that every pixel in the string may individually be sent a colour and brightness instruction. You can do animations and video effects since individual pixels may be various colours at the same time so you do not have to alter the full string at once.
Q：What is the difference between UCS1903 and GS8206 protocols?
A：Both are single-wire IC protocols compatible with standard pixel controllers. GS8206 supports a wider data refresh rate and is generally selected for installations requiring higher frame rates or longer pixel runs. UCS1903 is the standard option for most architectural and signage applications.
Q：How do I handle voltage drop over a long pixel string?
A：With DC24V, inject power every 50 pixels to maintain consistent brightness and color accuracy across the full run. This is one practical advantage of DC24V over DC12V for longer installations.
Q：What cap styles are available, and does it affect light output?
A：The pixel is available with a clear flat cap or a spiral cap. Cap style affects the visual texture of the emitted light and the aesthetic appearance of the fixture when unlit. Beam angle specifications apply to the standard flat cap configuration.
Q：What should I verify before specifying this pixel light for an outdoor project?
A：Check the waterproof rating against your installation environment, confirm the operating temperature range covers your climate, review UV exposure levels, plan cable routing and connector protection, and confirm your controller supports UCS1903 or GS8206 protocols.
Q：Is the 12-LED version the right choice for all applications?
A：The 12-LED version with 360° output is suited to installations where the pixel is viewed from multiple sides. For standard facade or flat-surface applications where the viewing angle is primarily frontal, the 6 or 9 LED version is typically sufficient.
For product inquiries or project consultation, contact us at inquiry@elisaled.com. We review all incoming messages and respond promptly for 45mm LED Pixel light.
