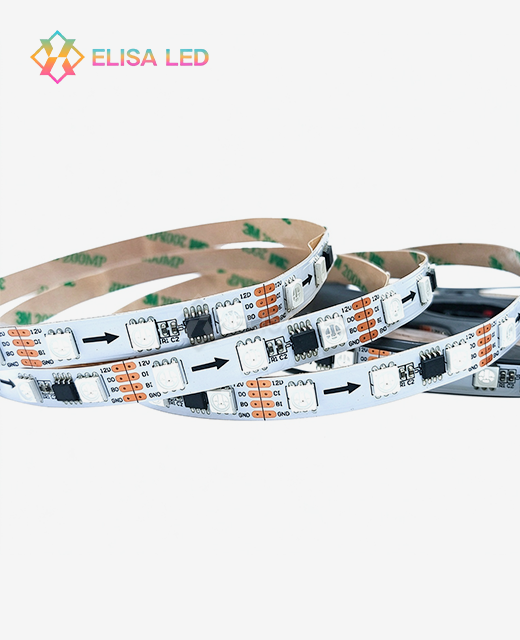

60LEDs/m WS2818 RGB Addressable LED Strip — Dual Signal Backup for Reliable Large-Scale Lighting

For architects, stage designers, and commercial integrators working on large installations, single-point LED failures that create dark spots in long runs are a persistent problem. The 60LEDs/m WS2818 RGB addressable LED strip resolves this with a dual-signal architecture built into the WS2818 IC — each pixel carries both a primary and a backup data line. Running at DC 12V with 14.4W/m power consumption and 504 lm/m brightness, this strip supports smooth color transitions across 16.7 million colors at 256 grayscale levels.

60LEDs/m WS2818 RGB Specifications

What Makes the WS2818 Different

The WS2818 IC uses a dual-signal wire design: each pixel carries both a primary data line and a backup data line. If one LED or IC fails, the signal automatically transfers to the backup line and continues downstream. The remaining pixels stay active — there are no broken sequences or dark zones in the rest of your run.

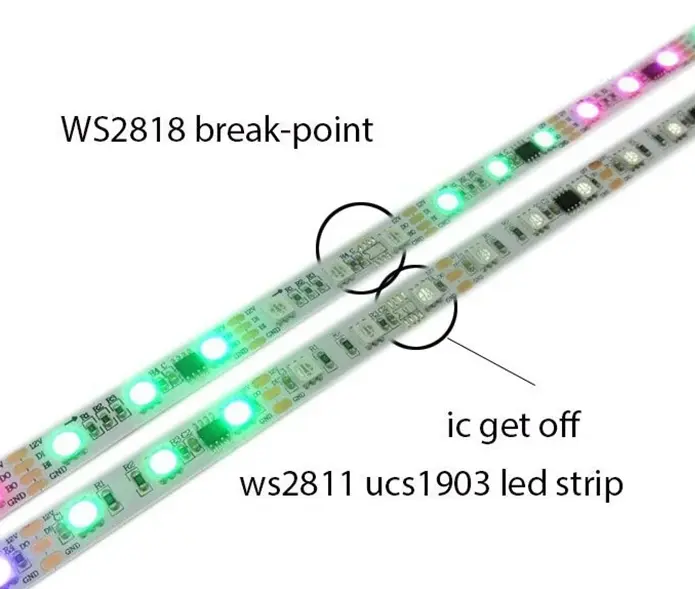

The WS2811 employs a single data line, unlike the standard Any failure at a link in the chain terminates all downstream LEDs, which is a big concern in large or hard to reach installations. The WS2818 has a breakpoint resume mechanism and is hence a better solution when continuous uptime is important.

Key Technical Advantages

Dual-Signal Redundancy

The backup data line is the defining feature of this strip. Signal integrity is maintained even when an individual IC fails — relevant for facade lighting, touring stage rigs, or any installation where mid-run access is difficult.

Stable 12V Architecture

Running at DC 12V, this strip reduces the voltage drop issues more common in 5V systems. You can run up to 5 meters from a single power injection point, or extend to 10 meters with dual-end power injection.

Balanced Pixel Density

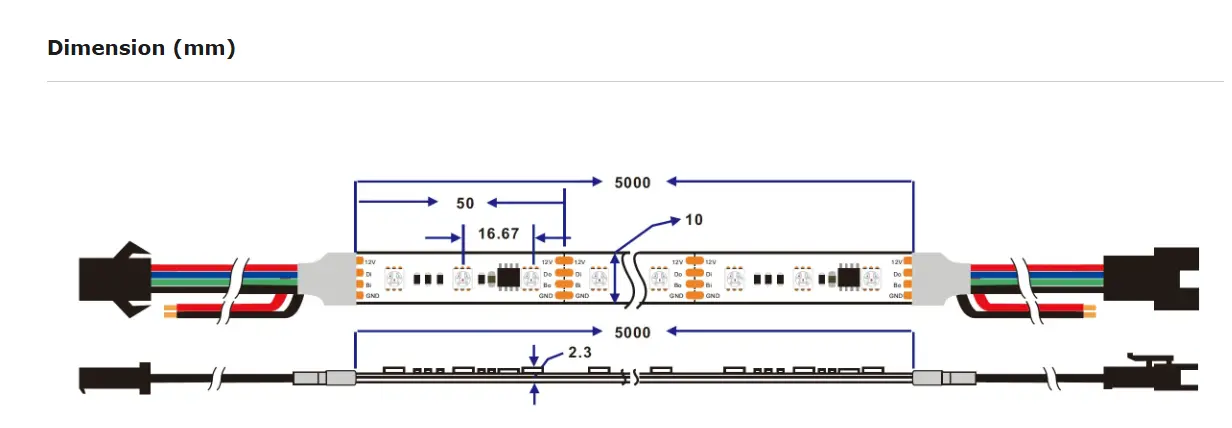

The 60 LEDs/m spacing at a 16.6mm pitch offers a workable balance between smooth gradient effects and heat output. It avoids the thermal stress associated with ultra-high-density strips while still supporting fluid motion effects in pixel-mapped sequences.

High Data Rate

The strip for 60LEDs/m WS2818 RGB supports data transmission up to 800Kbps, which helps maintain clean output in DMX or SPI-controlled environments.

Application Scenarios

Architectural Facade Lighting

For extended runs the breakpoint resume feature eliminates noticeable gaps in building outlines and external contours when individual pixels are lost due to weather exposure or physical stress over time.

Commercial Signage & Retail Displays

The 12V design and medium pixel density allow for reliable colour output over long runs in display case and channel letter signs with less colour shift between power injection points.

Producing for Theatre and Entertainment

The strip is designed for repeated deployment and vibration over numerous reels in DMX-controlled touring environments. The dual-signal approach decreases the chances of cascading failures when huge pixel-mapped arrays are in use, since it’s not always possible to check individual reels between presentations.

Quality Control

ElisaLED applies the following QC checkpoints before shipping:

• Signal Continuity Test — Each strip is tested by disabling a pixel to verify the breakpoint resume function operates correctly.
• Copper Weight Verification — PCBs use a minimum of 2oz oxygen-free copper to manage current load and reduce voltage drop along the run.
• Thermal Cycling — Strips undergo -40°C to +60°C temperature transitions to assess solder joint integrity and IC stability.
• Salt Spray Testing — IP65, IP67, and IP68 versions are tested to confirm that silicone or PVC extrusion protects WS2818 signal pins from corrosion.
• SDCM Color Consistency — Binning checks maintain SDCM <5 across production batches to support consistent RGB output across large installations.



Customization and OEM/ODM Options

ElisaLED supports OEM/ODM customization on this product, including PCB layout, LED chip selection, controller IC, housing, wiring, and packaging. The MOQ for standard configurations is 5 meters, and ElisaLED ships to customers in 50+ countries.

If you need a specific IP rating, PCB width, or reel length, contact the team directly — feasibility can typically be confirmed within 24 hours of your inquiry. Custom orders are produced within 7–10 days.

FAQ

Q: What is the difference between WS2818, WS2811, and WS2814?

A：WS2811 is a standard addressable RGB IC without signal backup — a single failure disables all downstream LEDs. WS2814 adds a dedicated white channel for true white output alongside color mixing. The product adds dual data lines for signal redundancy, making it more suitable for large or critical installations where continuous uptime is a priority.

Q: What should I consider before choosing a digital LED strip?

A：Key factors include IC type and protocol, operating voltage, LED density, color or white output requirements, signal reliability, control system compatibility, IP rating, and total run length.

Q: What is the maximum run length for this strip at 12V?

A：Up to 5 meters from a single power injection point without significant voltage drop. For 10-meter runs, use dual-end power injection.

Q: Is this strip compatible with Arduino or standard LED libraries?

A：Yes. It uses the same protocol as WS2811 and WS2812B and is compatible with FastLED and Adafruit NeoPixel libraries.
