60LEDs/m 24V DMX 5050 RGBW

60LEDs/m 24V DMX 5050 RGBW LED Strip — Pixel-Level Control for Professional Lighting Projects

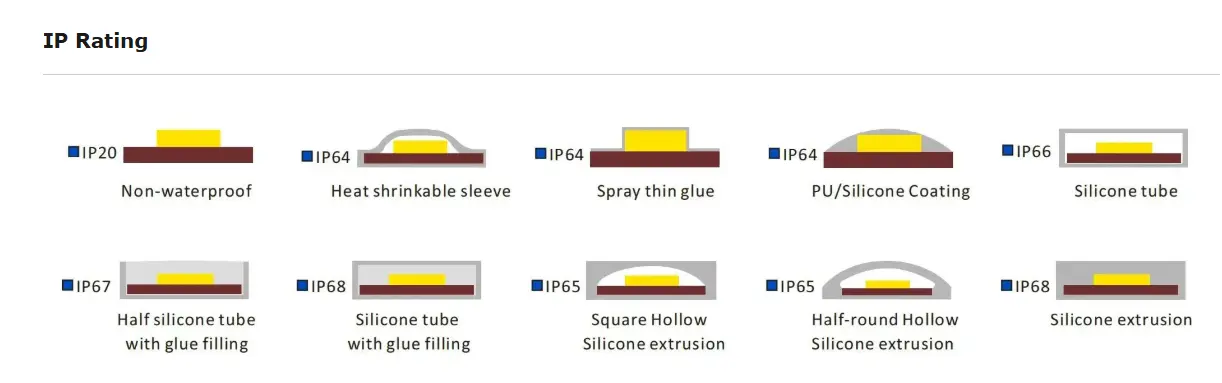

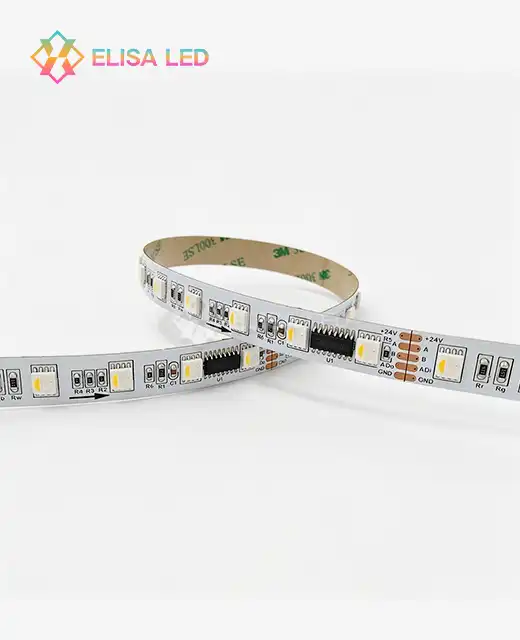

Designed for commercial, architectural, and entertainment installations, the 60LEDs/m 24V DMX 5050 RGBW LED strip combines 60 SMD 5050 4-in-1 chips per meter with the TM512AC4 DMX control IC. Each chip combines Red, Green, Blue and a dedicated White channel in one package providing fine pixel level control and accurate white output. The strip is available in IP20, IP65, IP67 and IP68 classifications for indoor and outdoor applications. MOQ starts at 5 meters with a lead time of 5–7 days.

What Is a 60LEDs/m 24V DMX 5050 RGBW LED Strip?

This strip operates on the DMX512 protocol with a differential signal architecture, meaning each pixel receives an independent signal. Unlike SPI strips where one failed IC can disrupt the chain, DMX512 parallel wiring allows the rest of the strip to continue operating if a single chip fails.

The 24V DC input reduces current compared to 12V systems, which helps limit voltage drop over longer runs. You can run up to 10 meters continuously without power injection — a practical consideration for large architectural projects.

The 4-in-1 5050 RGBW chip has RGB and a dedicated white channel. This provides white tones in a range from 3000K to 6500K without colour mixing, which enhances white accuracy for applications like pastel tones and skin tone illumination.

Full Technical Specifications

Key Technical Advantages

The strip operates at a refresh rate above 2000Hz, which reduces visible flicker in video capture and photography. This makes it suitable for studio and broadcast environments where camera compatibility is a requirement.

DMX signal integrity is verified over cable runs up to 30 meters. Beyond that distance, a DMX signal repeater is recommended to maintain reliable communication.

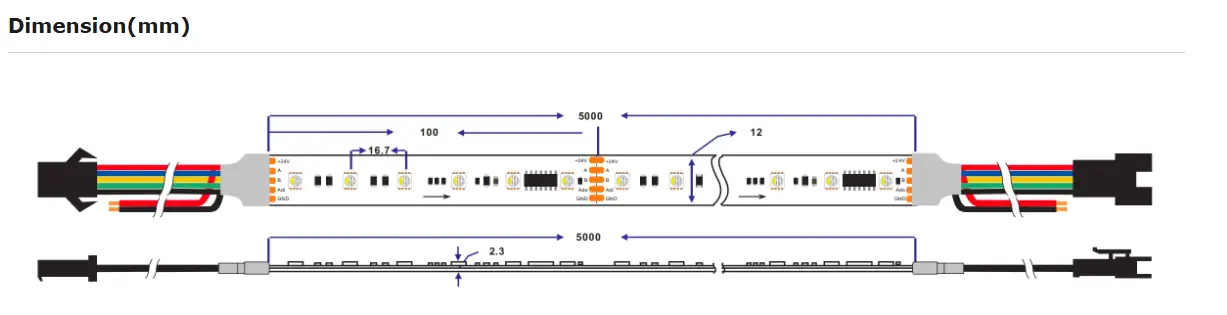

The 24V operating voltage keeps current levels lower than a 12V system at equivalent power, reducing resistive losses over distance. Combined with a 10mm PCB, the strip fits standard cove and channel profiles used in architectural installations.

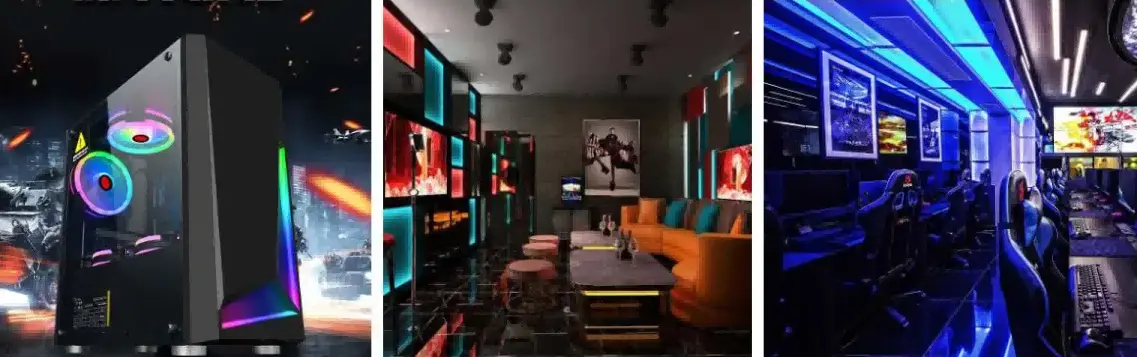

Where This Strip Is Used

Architectural media facades are one of the primary use cases for this strip. The DMX512 protocol maintains signal integrity across large building envelopes, including outdoor environments with electrical interference.

Stage and studio lighting applications benefit from the RGBW chip's dedicated white channel, which produces more consistent skin tones and color accuracy than RGB mixing alone.

High-end retail and hospitality installations — including hotels, restaurants, and commercial interiors — often integrate this strip with DMX control platforms such as Pharos or Madrix. The 24V architecture reduces current load in extended cove lighting runs where access for maintenance is limited.

Quality Control Process

Every production batch goes through a multi-stage testing process before shipment for 60LEDs/m 24V DMX 5050 RGBW:

• Integrating Sphere Test — measures luminous flux, CCT, and CRI to verify output against project specifications
• Thermal Cycling Test — exposes the strip to temperature extremes to assess solder joint and IC packaging durability
• Salt Spray Testing — applied to IP67 and IP68 versions intended for coastal or high-humidity environments
• DMX Signal Integrity Test — verifies square wave performance over 30-meter cable runs
• 72-Hour Continuous Burn-In — extended operation under load to identify early component failures before shipment



Customization and OEM/ODM Options

ElisaLED supports OEM and ODM projects. Available customization includes PCB design, LED chip selection, IC configuration, housing, wiring, and packaging. Custom projects are typically completed within 7–10 days.

Technical consultation and DMX addressing support are available. Customer inquiries receive a response within 24 hours.

FAQ

Q：What is the difference between this strip and other 24V DMX LED strips?

A：120LEDs/m DMX 2835 is suited for dynamic white chasing effects. 240LEDs/m DMX Dual White provides tunable warm and cool white output. 84LEDs/m DMX 5050 RGB covers full-color effects without a white channel. The product adds a dedicated white channel to RGB in a single chip. The 60LEDs/m DMX 5050 5-in-1 version includes both warm and cool white alongside RGB in one package.

Q：What is the advantage of DMX control for LED strips?

A：DMX512 enables synchronized dimming and effects across multiple strips and fixtures simultaneously. It is widely used in stage, architectural, and commercial installations where coordinated control across many channels is required.

Q：What is the difference between a 4-in-1 and 5-in-1 DMX 5050 strip?

A：The 4-in-1 chip combines RGB with one dedicated white channel for consistent single-white-point output. The 5-in-1 adds both warm and cool white channels alongside RGB, enabling tunable white and full-color effects within a single chip.

Q：Which strip is better suited for tunable white DMX applications?

A：The 240LEDs/m 24V DMX Dual White LED Strip is designed for tunable white applications, offering smooth warm-to-cool adjustment at higher LED density for uniform illumination.

Q：What should be considered when selecting a 24V DMX LED strip?

A：Key factors include LED density, color or white output requirements, DMX controller compatibility, IP rating for the installation environment, power supply voltage, cut interval, and whether your DMX infrastructure supports the IC addressing method used.

Q：Why use 24V instead of 12V for this strip?

A：24V reduces current for the same power output, which lowers voltage drop across longer runs. This supports continuous runs up to 10 meters without additional power injection, which is relevant in large-scale or difficult-to-wire installations.
