42LEDs/m DMX 5050 RGB
Brightness: 1080lm/w
MOQ: 5M
Lead Time: 5-7days
Cutting Unit: 166.7mm
Angle: 20°/30°/ 45°/60°
IP Rating: IP67
MOQ: 5M
Lead Time: 5-7days
Cutting Unit: 166.7mm
Angle: 20°/30°/ 45°/60°
IP Rating: IP67

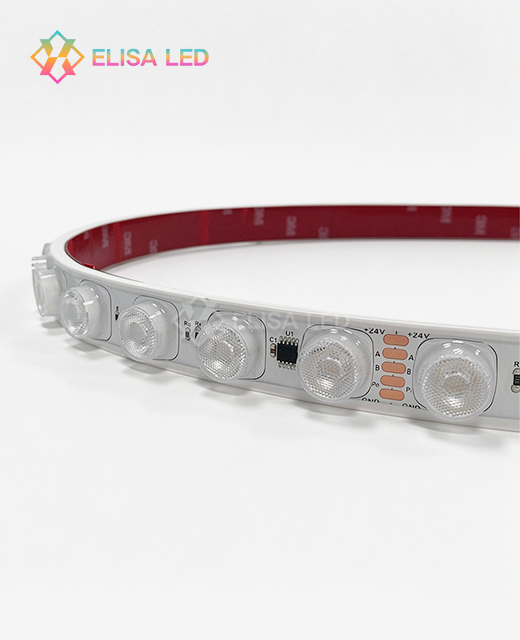

The 42LEDs/m DMX 5050 RGB flexible LED wall washer is designed for professional installations that require stable, programmable color control over long cable runs. Each meter has 42 SMD 5050 RGB chips controlled by DMX512 protocol. DC24V, 8W/m power consumption, 1080lm/m output. The IP67 protection and beam angle choices of 20°, 30°, 45° and 60° make it suitable to a wide variety of architectural and entertainment venues, with its 166.7mm cutting unit.
Unlike standard SPI-based strips, this product uses the industry-standard DMX512 communication protocol, which provides stable signal transmission across long cable distances.
The parallel signal architecture addresses the cascade failure problem. If one IC breaks, the remainder of the strip will still be operational – a significant benefit in permanent, large-scale installations where unforeseen downtime is expensive.
Balanced density of 42 LEDs per metre for powerful light production, while keeping heat generation moderate. This creates a smooth, continuous linear illumination with no black areas between the LEDs.
| Parameter | Details |
|---|---|
| Part Number | XXA-FWW-42D5050DMXRGB |
| LED Quantity | 42 LEDs/m |
| LED Type | SMD 5050 RGB |
| Voltage | DC24V |
| Power | 8W/m |
| Luminous Flux | 1080 lm/m |
| Beam Angle | 20° / 30° / 45° / 60° |

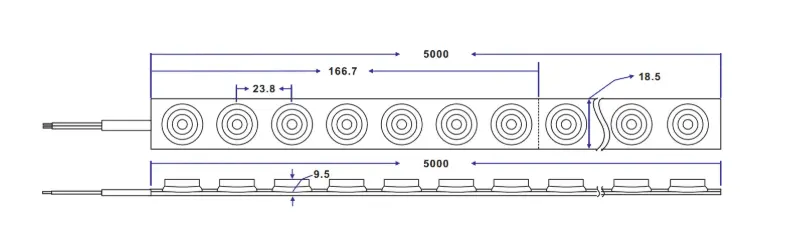

| Dimension | 5000 × 18.5mm |
| Cutting Unit | 166.7mm |
| IP Rating | IP67 |
| Control Protocol | DMX512 |
| MOQ | 5 meters |
| Lead Time | 5–7 days |
| Warranty | 2 years |
The embedded DMX512 ICs may be addressed per pixel or in groups, e.g. 3 or 6 LEDs per pixel. This allows the installers to have fine grained control over each segment of the strip without using extra decoders for simple settings.
IP67 protection means the strip is designated for dust-tight and brief immersion situations, suited for exterior facade work and exposed interior areas sensitive to dampness or cleaning.
For DC24V types, we suggest injecting power every 5-10 meters to ensure even brightness on longer runs. The 166.7mm cutting unit may be length adjusted to match exact architectural requirements with zero wastage.
The beam angle choices – 20°, 30°, 45° and 60° – allow specifiers to adapt the optic to the throw distance and surface texture of the wall being lighted, from close grazing effects on rough stone to larger washes on smooth concrete.
ElisaLED applies a multi-stage inspection process to each production batch of 42LEDs/m DMX 5050 RGB flexible LED Wall Washer.
Oscilloscopes are used to test the signal to ensure DMX waveforms are constant across the rated working distance of the strip. This way the control signal reaches every IC without degradations which might cause flicker or colour shifts.
Thermal testing cycles the strips to full brightness in heated settings to detect early LED degradation prior to product shipment. IP67 encapsulation is tested for every batch to ensure a completely sealed silicone or PU covering without any openings.
Architectural Facade Lighting: DMX512 delivers the signal stability needed for big building facades with extensive wire lengths and constant outside exposure. The IP67 classification allows for year-round external usage in most climes without extra housing.
Stage and event production: the strips are integrated into truss systems and stage backdrops, allowing synchronised colour sequences using Art-Net-to-DMX gateways. The parallel IC architecture implies if one node fails the remainder of the installation is unaffected.
Commercial Interiors Hotels and retail venues utilise this strip for programmable ambient lighting integrated with building automation systems. Other lower densities cannot match at the same viewing distances with the density of 42 LED/m which gives a smooth linear gradient.
ElisaLED provides OEM and ODM services including PCB design, LED chip selection, controller IC selection, housing, wiring and packaging. Beam Angle and IP rating may be specified as per project environment
Custom orders have different lead times than ordinary stock. For a precise manufacturing timeline based on your volume and configuration, please contact the team direct with your specs.
Q：What's the difference between RGB, RGBW and DMX RGB wall-washers?
A: RGB is used to create complete colour effects using red, green and blue channels. RGBW adds a separate white channel to reproduce true neutral white. DMX RGB has the same complete spectrum of colour as normal RGB but with the added benefit of being DMX512 addressable. This means that you can synchronise and manage big installations based on scenes.
Q：Which strip is good for professional sync lighting project?
A. The product is a flexible LED wall washer that can be individually or collectively addressed in pixels using DMX512, so it may be used in setups with many zones that require to execute coordinated sequences from a single controller.
Q：How does the strip handle a signal failure at one IC?
A：The strip uses a parallel signal design. If one IC fails, the remaining ICs on the strip continue to receive the DMX signal and operate normally. This differs from series-based SPI architectures where a single failure can interrupt the entire downstream chain.
Q：What factors should be reviewed before specifying a flexible LED wall washer?
A：Key considerations include LED density and luminous output, operating voltage and power supply sizing, color versus white lighting requirements, control protocol compatibility, IP rating relative to the installation environment, beam angle relative to throw distance, and mounting method.
Q：Can this strip be used where flicker is a concern, such as broadcast or filming environments?
A：The strip's DMX512 IC design supports stable PWM output. Whether it meets the specific refresh rate requirements of a given camera setup depends on both the strip's IC and the DMX controller being used. Contact ElisaLED with your specific camera and frame rate requirements for guidance.
Q：Is auto-addressing or manual DMX addressing better for permanent installations?
A：Auto-addressing ICs reduce commissioning time in field installations. Manual addressing gives more granular control and is generally preferred for fixed, permanent setups where address stability over time is a priority.
