D40 LED Pixel Tube
milky white tube
1m per piece
waterproof IP65/IP67
Free sample available
Lead Time: 3-5days
1m per piece
waterproof IP65/IP67
Free sample available
Lead Time: 3-5days

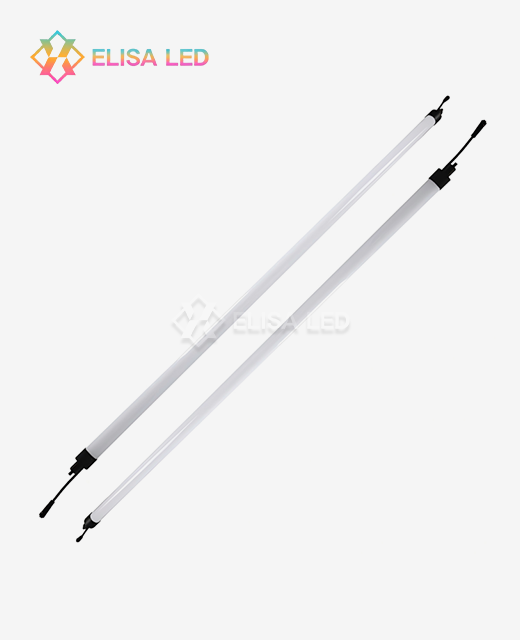

The D40 LED Pixel Tube is a 40mm diameter cylindrical RGB fixture built for architects, lighting designers, and project contractors who need pixel-level control in demanding outdoor environments. Operating at DC12V or DC24V, with an IP65/IP67 rating, SPI protocol, SMD5050, 120 LEDs/m, it offers uniform 360-degree illumination for media facades, stage productions and urban landscape projects — with a milky white PC housing that resists optical degradation from long-term solar exposure.
The device is a 40mm cylindrical LED fixture with intelligent IC driver incorporated. The individually addressable SMD LEDs allow pixel mapping from basic colour chase effects to synchronised architectural animations, all controlled via conventional DMX512 or SPI control.
Instead of static strip lights, this tube provides a consistent 360 or 180 degree illumination all along its 1 metre length. It overcomes frequent installation issues including dark patches in linear lines, signal attenuation in lengthy cable runs, and wiring complexity of 3D spatial mapping installations.
| Parameter | Details |
|---|---|
| Part Number | XXA-TUBE-D40 |
| Diameter | 40mm |
| Length | 1 m/piece |
| LED Type | SMD5050 RGB |
| LED Quantity | 120 LEDs/m（2pcs 60leds/m led strips inside） |
| IC Protocol | SPI / DMX512 |
| Input Voltage | DC12V / DC24V |
| Power Consumption | 28.8 W/m |
| IP Rating | IP65 / IP67 |
| Housing Color | Milky White |
| Operating Temperature | -40°C to +50°C |
| Sample Availability | Free sample available (only 0.5m) |
| Lead Time | 3–5 days (sample); 7–10 days (custom order) |
Material and Build Quality
The housing is constructed from UV-resistant polycarbonate (PC) with IK08 impact resistance to ensure the tube stays structurally sound on facades, bridges and high-footfall outdoor constructions. The milky white diffuser provides equal light distribution throughout the whole tube length, eliminating apparent hotspots even when seen at close range.

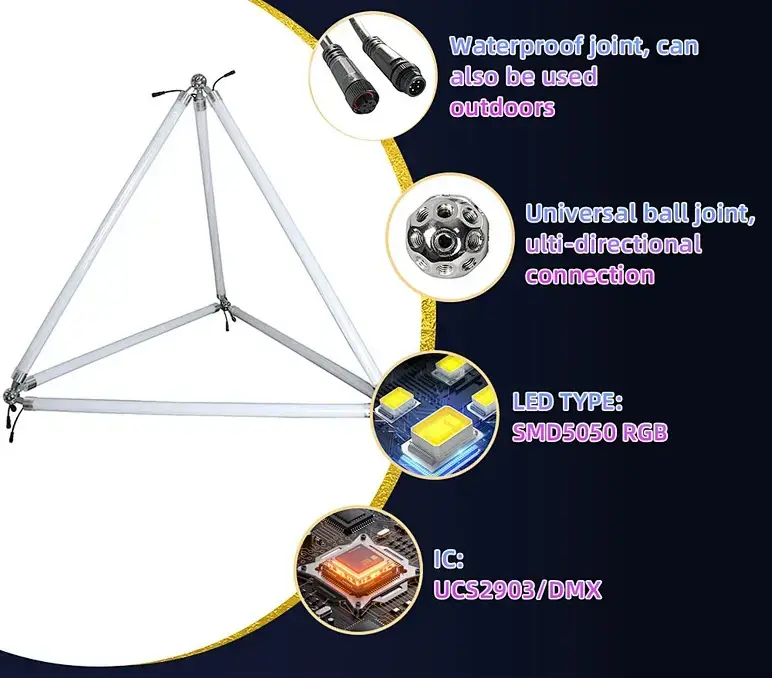

Each tube includes waterproof breathable valves and IP67-rated connectors. These allow the housing to equalize internal pressure during temperature swings without breaking the waterproof seal — a detail that matters in installations exposed to freeze-thaw cycles or coastal humidity.
The UC1903 IC protocol allows for pixel level control of each LED segment. When connected to an appropriate DMX512 or SPI pixel controller, the tubes allow chasing, colour waves and synchronised animations over vast arrays simultaneously.
Output flicker-free at ≥1920 Hz refresh rate – crucial for installations filmed by broadcast cameras or professional photographic equipment.
Signal Routing As with conventional DMX512 architecture: 1 universe = 512 channels (170 pixels) At 16 pixels per 1-meter tube, about 10 tubes per universe. DMX512 signal may be sent up to 100 meters. Adding a signal isolator every 30 meters keeps data stable for long runs.
The tubes include 2 signal lines to allow break-point resuming. If one segment of a led goes down the remainder of the tube will still work. This reduces the service calls on large scale permanent installations.

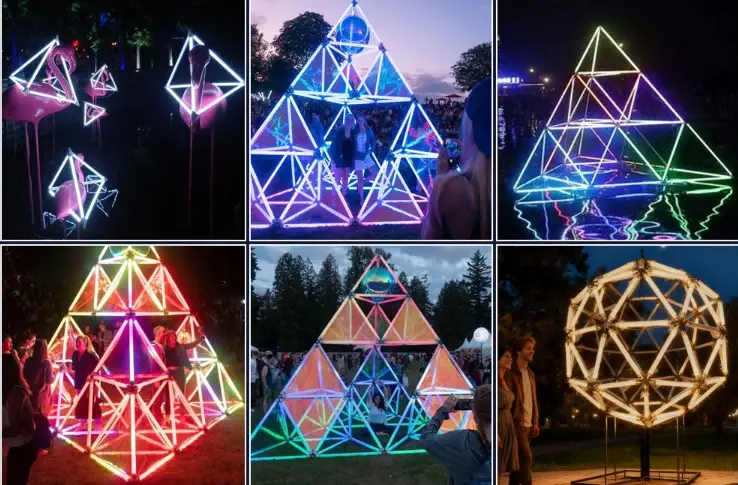

Media Facades and Building Envelopes
IP67 rated and UV resistant PC casing makes these tubes ideal for permanent installation outside the business building. The standard 1-meter lengths are compatible with standard architectural grid modules, minimising on-site cutting and re-termination.
Concert Stages and Touring Productions
The tubular form and consistent 1-meter length let crews assemble 3D light arrays, "light forest" structures, or geometric rigs quickly. MADRIX, Resolume, and other Art-Net/DMX software drive pixel mapping and real-time visual programming.
Urban Landscape and Bridge Lighting
Long-distance DMX signal support and IK08 mechanical durability make these tubes for D40 LED Pixel Tube suitable for bridge outlines, pedestrian walkways, and public art installations where wind load and vibration are regular operating conditions.

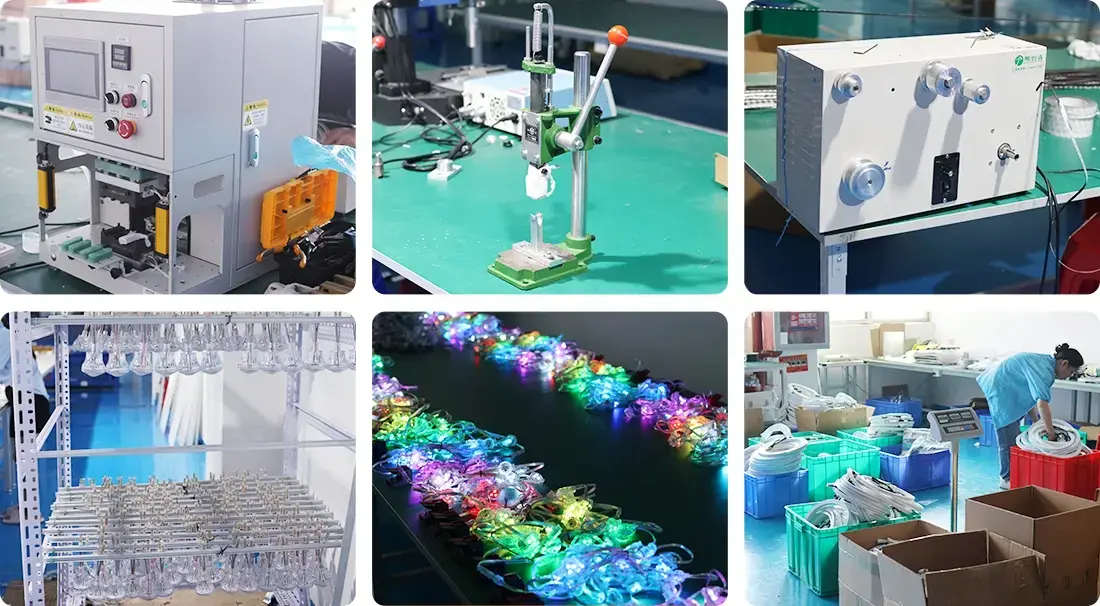

ElisaLED runs a multi-stage quality control process on every production batch:
Aging tests, photometric testing, and environmental reliability testing are also part of standard production verification.
ElisaLED can customise PCB design, LED chip selection, controller IC, housing finish, wire arrangement and packaging. Standard lengths are 0.5m and 1m, with bespoke lengths possible for certain architectural grids, where pixel pitch is recalculated to preserve consistent visual impact.
The staff will react to you in 24 hours with answers. Before big orders, free samples are available.
Q: How does the product differ from other pixel tube products in the ElisaLED range?
A：The D40 is built for architectural outlines and creative displays. Other products in the range — such as the D20/D30 LED Meteor Tube, the 48D1912 LED Guardrail Tube, and the D47/D57 Bumper Car Pixel Tube — are each optimized for different applications and environments. Speak with the team to confirm which product fits your project requirements.
Q: Are these tubes individually addressable?
A: Yes. Each tube has independent addressable RGB control, allowing pixel effects when used with a suitable DMX or SPI pixel controller.
Q: How many D40 tubes are there in a DMX universe?
A: 512 channels (170 pixels) is one DMX universe. 16 pixels per 1 metre tube, 10 tubes / universe.
Q:What to check before installation?
A: Check input voltage, power supply size, control protocol (DMX or SPI), IP rating for the installation environment, cable routing plan, connection protection, mounting technique, operational temperature range, and maintenance access. Please confirm this with your ElisaLED contact before the final design is agreed.
Q: Is this product compatible with MADRIX software?
A: Yes. It works with MADRIX, Resolume and other Art-Net/DMX control systems for pixel mapping and real time visual programming.
Q: Can tube length be customized?
A：Yes. Standard lengths 0.5 m and 1 m however custom lengths may be supplied. Pixel pitch is adjusted to your architectural grid proportions.
Send project details or sample requests to inquiry@elisaled.com. The team responds within 24 hours for D40 LED Pixel Tube.
